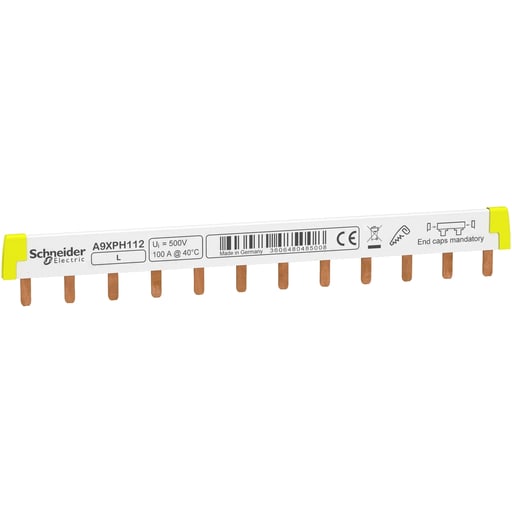

Square-D / Schneider - Square D A9XPH112 100 Amp 415 Volt 1-Phase 12-Module Circuit Breaker Comb Busbar

This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 1L installations. The type is L (Line). It is a set of 1 device. It is suitable for 12 devices (1P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 1. The Ie rated operational current at 40.C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960.C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards. Prop 65: WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: A9XPCM04; A9XPT920; A9XPE110; A9XPCD04 - Cross Sell Products: A9XPCM04; A9XPE110 - Up Sell Products: A9XPH124
