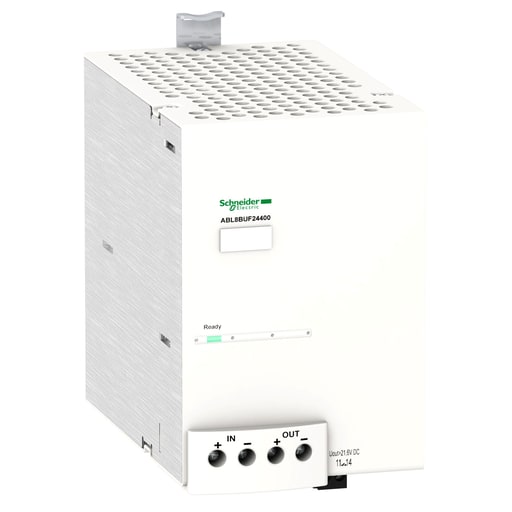

Square-D / Schneider - Square D ABL8BUF24400 POWER SUPPLY BUFFER MODULE

Essential specifications

12-Digit UPC - 389119406812
Applications - ABL8B
Catalog Number - ABL8BUF24400
Country of Origin - Philippines
Current - 0.1 mA

Packaging

1 ea

EAN

03389119406819

Part #

192056

Catalog #

ABL8BUF24400

Commercial reference

ABL8BUF24400

12-Digit UPC:

389119406812

Applications:

ABL8B

Catalog Number:

ABL8BUF24400

Country of Origin:

Philippines

Current:

0.1 mA

ERP_productname:

SQD ABL8BUF24400 POWER SUPPLY BUFFER MODULE

Family Brand Name:

Schneider Electric

Input Voltage:

24-28.8 V

Max Output Current:

40 A

Output Voltage:

(Uin-0.25) V nominal mode DC;(Uin-1) V buffer mode DC

Sub Brand:

PHASEO

Tc Connection:

INPUT CONNECTION SCREW TYPE TERMINALS 2 X 0.5...2 X 10 MMA. AWG 20...AWG 8-OUTPUT CONNECTION SCREW TYPE TERMINALS 2 X 0.5...2 X 10 MMA. AWG 20...AWG 8-DIAGNOSTIC RELAY REMOVABLE SCREW TERMINAL BLOCK 1 X 2.5 MMA. AWG 14

Type:

Buffer module

Wattage:

15 Watt

SoneparProductId:

SKU_US_30879526

This ABL8 buffer module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A at 24V DC. This buffer module is designed to provide power during consumption surges or during short network power losses. It provides temporary backup power in case of deep voltage sags and breaks, without the use of batteries. It weighs 1,200kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
