Square-D / Schneider - Square D AL2500RK 2-Pack Circuit Breaker Mechanical Lug Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901441304
Amperage - 2500 Amp
Applications - POWERPACT R POWERPACT
Catalog Number - AL2500RK
Circuit Breaker Type - R-Frame
Packaging
1 ea
EAN
00785901441304
Part #
149896
Catalog #
AL2500RK
Commercial reference
AL2500RK
12-Digit UPC:
785901441304
Amperage:
2500 Amp
Applications:
POWERPACT R POWERPACT
Catalog Number:
AL2500RK
Circuit Breaker Type:
R-Frame
Country of Origin:
USA
ERP_productname:
SQD AL2500RK CIRCUIT BREAKER MECHANICAL LUG KIT (2)
Family Brand Name:
Square D
Frame:
R-FRAME
Material:
Aluminum
Mounting Type:
Unit Mount
Tc Connection:
AWG 1/0...750 KCMIL ALUMINIUM/COPPER
Type:
MECHANICAL LUG
SoneparProductId:
SKU_US_26475102

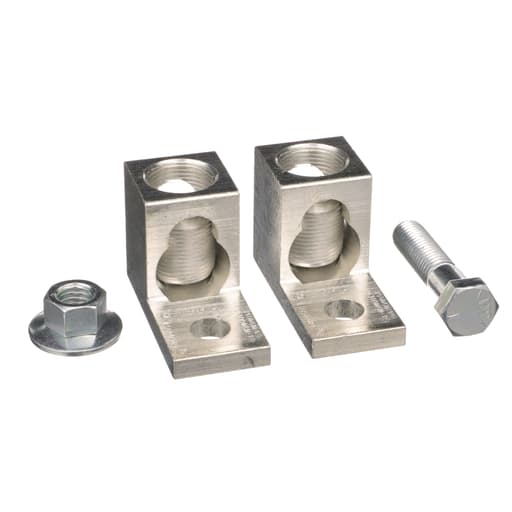

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT R circuit breakers. These aluminum lugs are rated for 2500A. The lugs accept 1/0 AWG to 750kcmil aluminum and copper conductors. These lugs comply with UL and CSA standards. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: RGF36250CU31A; RGF36250CU33A; RGF36250CU41A; RGF36250U44A; RKF36250U44A; RKF36250U64AE1
