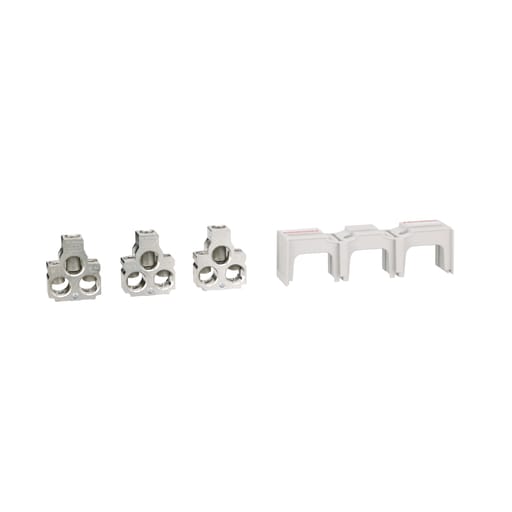

Square-D / Schneider - Square D AL800M23TK 3-Pack Circuit Breaker Tapped Lug Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901690504
Amperage - 800 Amp
Catalog Number - AL800M23TK
Country of Origin - USA
ERP_productname - SQD AL800M23TK CIRCUIT BREAKER TAPPED LUG KIT (3 LUGS)
Packaging
1 ea
EAN
00785901690504
Part #
144497
Catalog #
AL800M23TK
Commercial reference
AL800M23TK
12-Digit UPC:
785901690504
Amperage:
800 Amp
Catalog Number:
AL800M23TK
Country of Origin:
USA
ERP_productname:
SQD AL800M23TK CIRCUIT BREAKER TAPPED LUG KIT (3 LUGS)
Family Brand Name:
Square D
Frame:
M AND P
Tc Connection:
LUGS (BOTH ENDS) #8 TO #1/0 AWG(AL) #14 TO #1/0 AWG(CU)
Type:
M AND P,STANDARD
SoneparProductId:
SKU_US_25640052
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT P circuit breakers. The lugs are rated for 800A. The lugs accept 3/0 AWG to 500kcmil aluminum conductors. These lugs also have a tapped hole for a control wire. These lugs comply with UL and CSA standards. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Compatible Products: EZM1600CB; PGL36100CU33A; EZM3600CB; PJF36080CU31A; EZM3800CB; EZM3400CB; PJP36080U31F; EZM1400CB
