Square-D / Schneider - Square D ATS01N125FT 400 Volt 17 Amp 7.5 Hp 3-Phase IP20 Soft Starter

Essential specifications

12-Digit UPC - 389119200458
Amperage - 125 Amp AT NOMINAL LOAD
Applications - ASYNCHRONOUS MOTORS,SIMPLE MACHINE
Catalog Number - ATS01N125FT
Country of Origin - Germany

Packaging

1 ea

EAN

03389119200455

Part #

248695

Catalog #

ATS01N125FT

Commercial reference

ATS01N125FT

12-Digit UPC:

389119200458

Amperage:

125 Amp AT NOMINAL LOAD

Applications:

ASYNCHRONOUS MOTORS,SIMPLE MACHINE

Catalog Number:

ATS01N125FT

Country of Origin:

Germany

Current:

125 Amp

Depths:

131 mm

ERP_productname:

SQD ATS01N125FT SOFT STARTER FOR ASYNCHRONOUS MOTOR - ATS01 - 25 A - 110..480V - 2.2..11 KW

Family Brand Name:

Schneider Electric

Heights:

124 mm

Number of Phases:

1 Phase

Output Voltage:

<= power supply voltage

Size:

5.16 in

Tc Connection:

4 MM SCREW CLAMP TERMINAL - RIGID 1 1...10 MMA. AWG 8 POWER CIRCUIT-SCREW CONNECTOR - FLEXIBLE WITHOUT CABLE END 2 0.5...1.5 MMA. AWG 16 CONTROL CIRCUIT-SCREW CONNECTOR - RIGID 1 0.5...2.5 MMA. AWG 14 CONTROL CIRCUIT-4 MM SCREW CLAMP TERMINAL - RIGID 2 1...6 MMA. AWG 10 POWER CIRCUIT-SCREW CONNECTOR - RIGID 2 0.5...1 MMA. AWG 17 CONTROL CIRCUIT-SCREW CONNECTOR - FLEXIBLE WITH CABLE END 1 0.5...1.5 MMA. AWG 16 CONTROL CIRCUIT-4 MM SCREW CLAMP TERMINAL - FLEXIBLE WITHOUT CABLE END 1 1.5...10 MMA. AWG 8 POWER CIRCUIT-SCREW CONNECTOR - FLEXIBLE WITHOUT CABLE END 1 0.5...2.5 MMA. AWG 14 CONTROL CIRCUIT-4 MM SCREW CLAMP TERMINAL - FLEXIBLE WITH CABLE END 2 1...6 MMA. AWG 10 POWER CIRCUIT-4 MM SCREW CLAMP TERMINAL - FLEXIBLE WITHOUT CABLE END 2 1.5...6 MMA. AWG 10 POWER CIRCUIT

Type:

ATS01;Soft starter

Voltage:

<= POWER SUPPLY VOLTAGE

Wattage:

1 Watt AT FULL LOAD AND AT END OF STARTING-126 Watt IN TRANSIENT STATE

Widths:

45 mm

SoneparProductId:

SKU_US_27219785

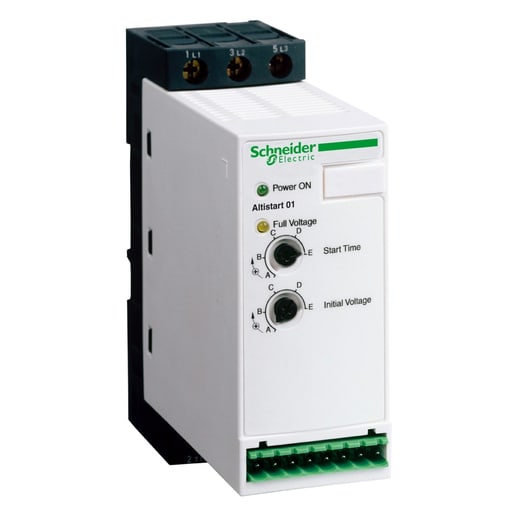

This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 25A. This Altistart 01 can be used for a motor rated power up to 11kW or 15hp for 3-phase (110V to 480V AC) and up to 2.2kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: GV2ME20; GV2ME21; GV2ME22; LC1D25BD - Cross Sell Products: DF2CA20; GV2ME20; DF2CA25; GV2ME21; GV2ME22; LRD21; LC1D18B7; LC1D18BD; LC1D18BL; LC1D18E7; LC1D18ED; LC1D18F7; LC1D18M7; LC1D18P7; LC1D18U7; LC1D25B7; LC1D25BD; LC1D25BL; LC1D25E7; LC1D25ED; LC1D25F7; LC1D25FE7; LC1D25M7; LC1D25P7; LC1D25U7; LC1D25V7
