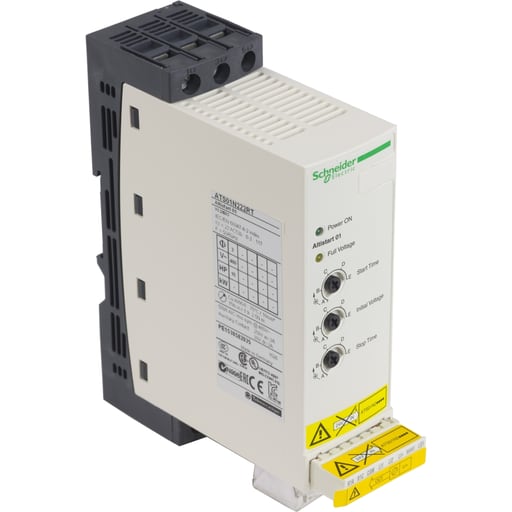

Square-D / Schneider - Square D ATS01N222RT 440 to 480 VAC 22 Amp 15 Hp 3-Phase IP20 Soft Starter

Essential specifications

12-Digit UPC - 389110667328
Amperage - 22A
Applications - ASYNCHRONOUS MOTORS
Catalog Number - ATS01N222RT
Country of Origin - Germany

Packaging

1 ea

EAN

03389110667325

Part #

127539

Catalog #

ATS01N222RT

Commercial reference

ATS01N222RT

12-Digit UPC:

389110667328

Amperage:

22A

Applications:

ASYNCHRONOUS MOTORS

Catalog Number:

ATS01N222RT

Country of Origin:

Germany

Current:

110 Amp

Depths:

131 mm

ERP_productname:

SQD ATS01N222RT SOFT START

Enclosure:

IP20

Family Brand Name:

Schneider Electric

Heights:

154 mm

Number of Phases:

3 Phase

Output Voltage:

<= power supply voltage

Size:

5.16 in

Sub Brand:

ATS01

Tc Connection:

4 MM SCREW CLAMP TERMINAL - RIGID 1 1...10 MMA. AWG 8 POWER CIRCUIT-SCREW CONNECTOR - FLEXIBLE WITHOUT CABLE END 2 0.5...1.5 MMA. AWG 16 CONTROL CIRCUIT-SCREW CONNECTOR - RIGID 1 0.5...2.5 MMA. AWG 14 CONTROL CIRCUIT-4 MM SCREW CLAMP TERMINAL - RIGID 2 1...6 MMA. AWG 10 POWER CIRCUIT-SCREW CONNECTOR - RIGID 2 0.5...1 MMA. AWG 17 CONTROL CIRCUIT-SCREW CONNECTOR - FLEXIBLE WITH CABLE END 1 0.5...1.5 MMA. AWG 16 CONTROL CIRCUIT-4 MM SCREW CLAMP TERMINAL - FLEXIBLE WITHOUT CABLE END 1 1.5...10 MMA. AWG 8 POWER CIRCUIT-SCREW CONNECTOR - FLEXIBLE WITHOUT CABLE END 1 0.5...2.5 MMA. AWG 14 CONTROL CIRCUIT-4 MM SCREW CLAMP TERMINAL - FLEXIBLE WITH CABLE END 2 1...6 MMA. AWG 10 POWER CIRCUIT-4 MM SCREW CLAMP TERMINAL - FLEXIBLE WITHOUT CABLE END 2 1.5...6 MMA. AWG 10 POWER CIRCUIT

Type:

ATS01;Soft starter

Voltage:

414-528 Volt,50...60 HZ-5...5 ,<= POWER SUPPLY VOLTAGE

Widths:

45 mm

SoneparProductId:

SKU_US_26756364

This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 22A. This Altistart 01 can be used for a motor rated power up to 5.5kW or 7.5hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: ATS01N222LU; ATS01N222QN
