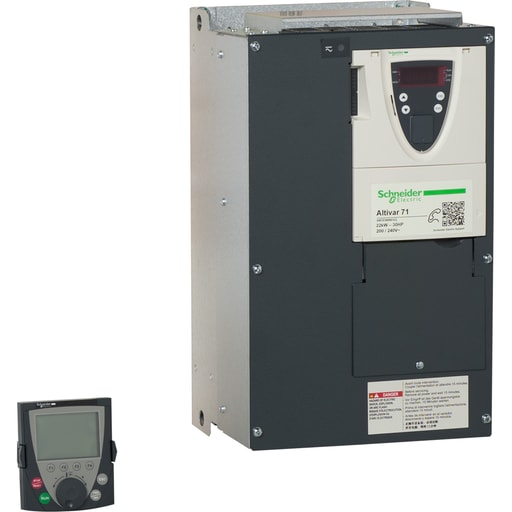

Square-D / Schneider - Square D ATV71HD22M3X 230 VAC 30 Hp Variable Speed Drive

12-Digit UPC:

785901697794

Applications:

CONSTANT TORQUE

Catalog Number:

ATV71HD22M3X

Country of Origin:

India

Depths:

9.29 Inch

ERP_productname:

SQD ATV71HD22M3X 30HP 230V VFD

Enclosure:

IP20

Family Brand Name:

Schneider Electric

Heights:

16.54 Inch

Number of Phases:

3 Phase

Size:

FRAME 6

Sub Brand:

ALTIVAR 71

Tc Connection:

AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR TERMINAL 2.5 MMA. / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB TERMINAL 50 MMA. / AWG 1/0

Torque Rating:

220 OF NOMINAL MOTOR TORQUE FOR 2 SECONDS, 170 FOR 60 SECONDS

Type:

AC DRIVE

Voltage:

208/240VAC

Wattage:

22 kW

Widths:

9.45 in

SoneparProductId:

SKU_US_26466587
