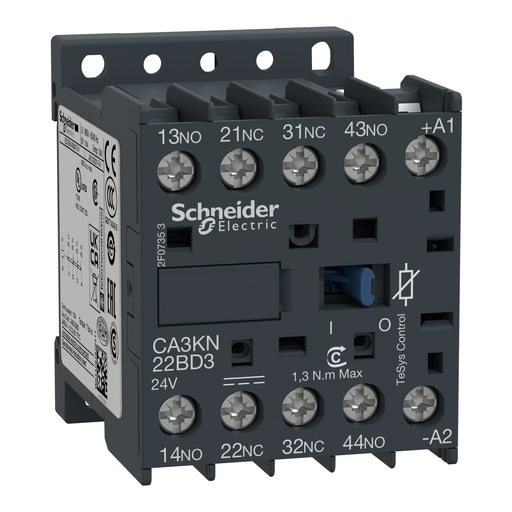

Square-D / Schneider - Square D CA3KN22BD3 240 VDC 24 VDC 10 Amp 3 W 4-Pole 2NO 2NC IP2X IEC Control Relay

CopyCopy
Square-D / Schneider - Square D CA3KN22BD3 240 VDC 24 VDC 10 Amp 3 W 4-Pole 2NO 2NC IP2X IEC Control Relay

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389110483805

  • Amperage - 10 Amp AT <= 50 .C

  • Applications - CONTROL CIRCUIT

  • Catalog Number - CA3KN22BD3

  • Country of Origin - Indonesia

Packaging

  • 1 ea

EAN

03389110483802

Part #

183957

Catalog #

CA3KN22BD3

Commercial reference

CA3KN22BD3

12-Digit UPC:

389110483805

Amperage:

10 Amp AT <= 50 .C

Applications:

CONTROL CIRCUIT

Catalog Number:

CA3KN22BD3

Country of Origin:

Indonesia

Depths:

57 mm

ERP_productname:

SQD CA3KN22BD3 CONTROL RELAY 600VAC 10AMP IEC +OPTIONS

Enclosure:

IP2X

Family Brand Name:

Schneider Electric

Heights:

58 mm

Size:

45 MM,57 MM,58 MM

Sub Brand:

CA3K,TESYS CAK

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-1.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITHOUT CABLE END

Type:

CONTROL RELAY

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_26371751

TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN22; LA1KN40; LA1KN31; LA1KN04; LA1KN13; LA9D90; LA2KT2U
