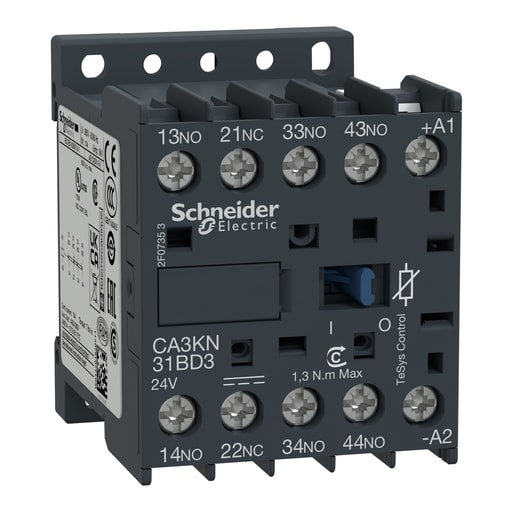

Square-D / Schneider - Square D CA3KN31BD3 240 VDC 24 VDC 10 Amp 3 W 4-Pole 3NO 1NC IP2X IEC Control Relay

Essential specifications

12-Digit UPC - 389110484284
Amperage - 10 Amp AT <= 50 ?.C
Applications - Control circuit
Catalog Number - CA3KN31BD3
Country of Origin - Singapore

Packaging

1 ea

EAN

03389110484281

Part #

174163

Catalog #

CA3KN31BD3

Commercial reference

CA3KN31BD3

12-Digit UPC:

389110484284

Amperage:

10 Amp AT <= 50 ?.C

Applications:

Control circuit

Catalog Number:

CA3KN31BD3

Country of Origin:

Singapore

Depths:

57 mm

ERP_productname:

SQD CA3KN31BD3 24VDC IND CTRL RELAY

Enclosure:

IP2X

Family Brand Name:

Schneider Electric

Heights:

58 mm

Size:

2.24 in

Sub Brand:

CA3K;TeSys CAK

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-1.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITHOUT CABLE END

Type:

Control relay

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_69992622

TeSys K control relay, 4 contacts (3NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN22; LA1KN40; LA1KN31; LA1KN04; LA1KN13; LA9D90; LA2KT2U
