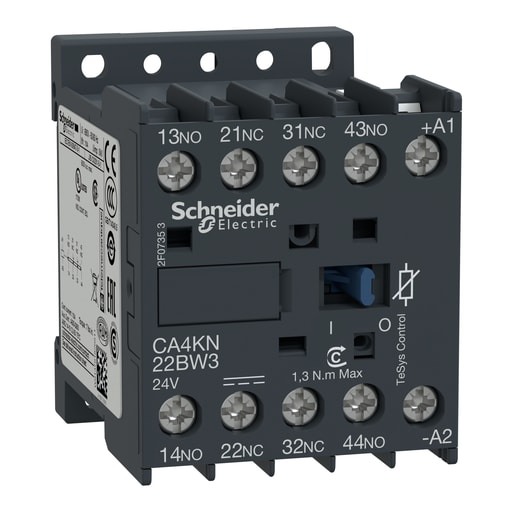

Square-D / Schneider - Square D CA4KN22BW3 24 VDC 10 Amp 18 W 4-Pole 2NO 2NC IEC Control Relay

Essential specifications

12-Digit UPC - 389110428592
Amperage - 10 Amp AT <= 50 ?.C
Applications - Control circuit
Catalog Number - CA4KN22BW3
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110428599

Part #

126578

Catalog #

CA4KN22BW3

Commercial reference

CA4KN22BW3

12-Digit UPC:

389110428592

Amperage:

10 Amp AT <= 50 ?.C

Applications:

Control circuit

Catalog Number:

CA4KN22BW3

Country of Origin:

Indonesia

Depths:

57 mm

ERP_productname:

SQD CA4KN22BW3 CONTROL RELAY 600VAC 10AMP IEC +OPTIONS

Enclosure:

IP2X

Family Brand Name:

Schneider Electric

Heights:

58 mm

Size:

2.24 in

Sub Brand:

CA4K;TeSys CAK

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-1.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITHOUT CABLE END

Type:

Control relay

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_26108758

TeSys K control relay, 4 contacts (2NO+2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN11; LA1KN20; LA1KN02; LA9D90
