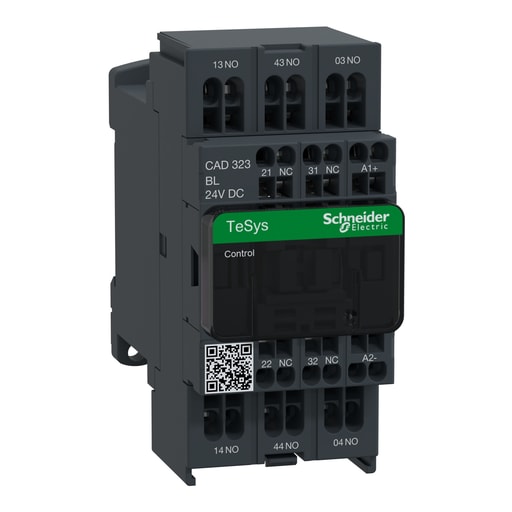

Square-D / Schneider - Square D CAD323BL RELAY 600V 10AMP TESYS + OPTIO

Essential specifications

12-Digit UPC - 785901671787
Amperage - 10 Amp AT <= 60 ?.C
Applications - Control circuit
Catalog Number - CAD323BL
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110820669

Part #

102702

Catalog #

CAD323BL

Commercial reference

CAD323BL

12-Digit UPC:

785901671787

Amperage:

10 Amp AT <= 60 ?.C

Applications:

Control circuit

Catalog Number:

CAD323BL

Country of Origin:

Indonesia

Depths:

93 mm

ERP_productname:

SQD CAD323BL RELAY 600V 10AMP TESYS + OPTIONS

Enclosure:

IP2X CONFORMING TO VDE 0106

Family Brand Name:

Schneider Electric

Heights:

99 mm

Size:

3.66 in

Sub Brand:

CAD;TeSys CAD

Tc Connection:

SPRING TERMINALS 1 1-2.5 MMA.FLEXIBLE WITHOUT CABLE END- SPRING TERMINALS 2 1-2.5 MMA.FLEXIBLE WITHOUT CABLE END- SPRING TERMINALS 1 1-2.5 MMA.SOLID WITHOUT CABLE END- SPRING TERMINALS 2 1-2.5 MMA.SOLID WITHOUT CABLE END

Type:

Control relay

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_29796130

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LAD9ET1S; LAD4DDL; LADN113; LAD6K10M; LADN203; LAD9ET1; LAD6K10F; LAD6K10B; LADN023; LADR23; LADT03; LAD6K10E; LADR03; LADS23; LADT23; LA9D93; LADC223; LAD6K10U; LADT43 - Cross Sell Products: LC1D09M7
