Square-D / Schneider - Square D CAD326G7 RELAY 600V 10AMP TESYS+ OPTIONS
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110847133
Amperage - 10 Amp AT <= 60 ?.C
Applications - Control circuit
Catalog Number - CAD326G7
Country of Origin - France
Packaging
1 ea
EAN
03389110847130
Part #
221303
Catalog #
CAD326G7
Commercial reference
CAD326G7
12-Digit UPC:
389110847133
Amperage:
10 Amp AT <= 60 ?.C
Applications:
Control circuit
Catalog Number:
CAD326G7
Country of Origin:
France
Depths:
84 mm
ERP_productname:
SQD CAD326G7 RELAY 600V 10AMP TESYS+ OPTIONS
Enclosure:
IP2X FRONT FACE CONFORMING TO VDE 0106
Family Brand Name:
Schneider Electric
Heights:
77 mm
Size:
3.31 in
Sub Brand:
CAD;TeSys CAD
Tc Connection:
LUGS-RING TERMINALS 8 MM)
Type:
Control relay
Voltage:
690 Volt
Widths:
45 mm
SoneparProductId:
SKU_US_31496960

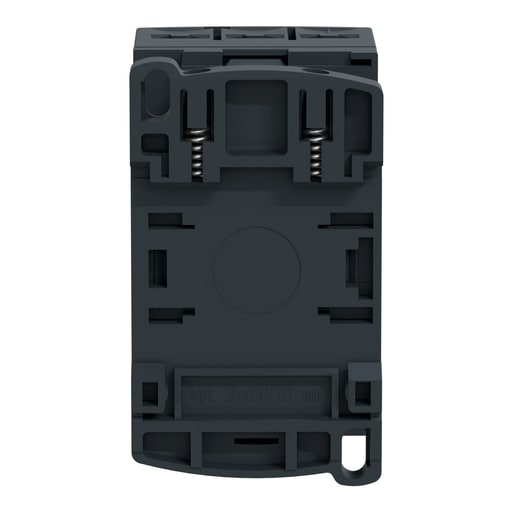

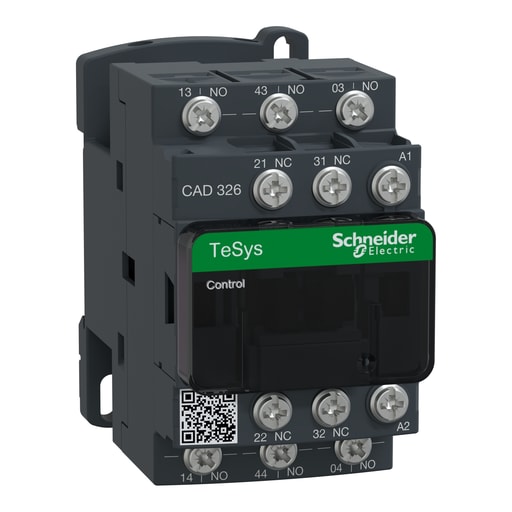

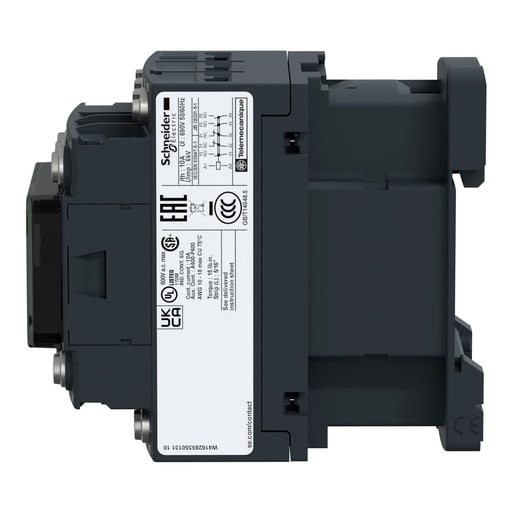

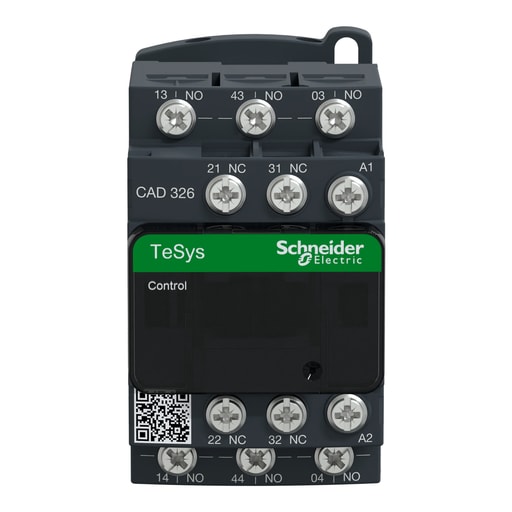

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 120V AC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LAD4RCU; LAD4VG; LAD4RCG; LAD4VU; LAD9ET1S; LAD6K10M; LADN226; LADN116; LADN406; LAD9ET1; LAD6K10F; LADN206; LAD6K10B; LADN316; LADT26; LADR06; LADN026; LADR26; LAD6K10E; LAD8N116; LA9D93; LADR46; LADT46; LAD6K10U - Cross Sell Products: LC1D09M7 - Spare Part Products: LXD1G7
