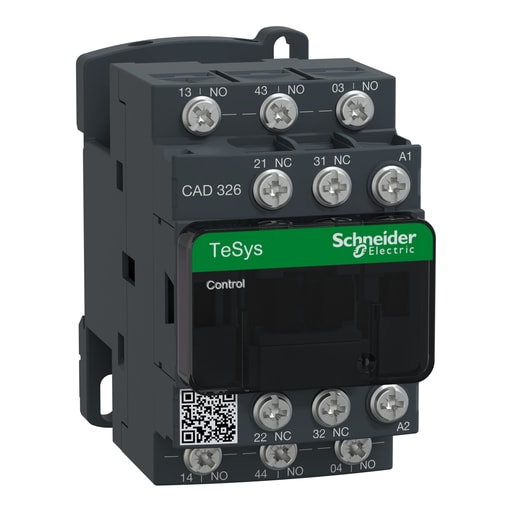

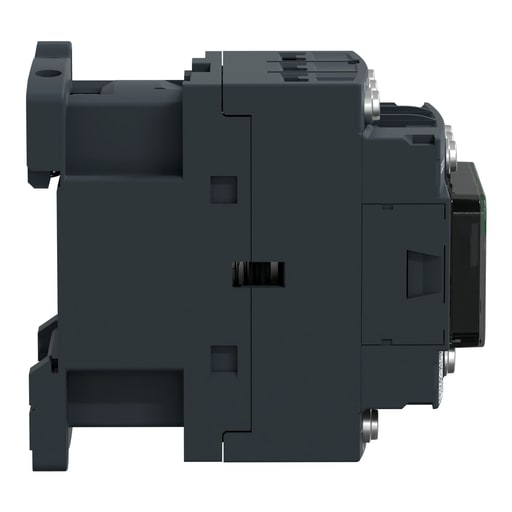

Square-D / Schneider - Square D CAD326U7 240 VAC 10 Amp 5-Pole 5NO IEC Control Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901448631
Amperage - 10 Amp AT <= 60 ?.C
Applications - Control circuit
Catalog Number - CAD326U7
Country of Origin - Indonesia
Packaging
1 ea
EAN
03389118003729
Part #
171160
Catalog #
CAD326U7
Commercial reference
CAD326U7
12-Digit UPC:
785901448631
Amperage:
10 Amp AT <= 60 ?.C
Applications:
Control circuit
Catalog Number:
CAD326U7
Country of Origin:
Indonesia
Depths:
84 mm
ERP_productname:
SQD CAD326U7 RELAY 600V 10AMP TESYS+ OPTIONS
Enclosure:
IP2X FRONT FACE CONFORMING TO VDE 0106
Family Brand Name:
Schneider Electric
Heights:
77 mm
Size:
3.31 in
Sub Brand:
CAD;TeSys CAD
Tc Connection:
LUGS-RING TERMINALS 8 MM)
Type:
Control relay
Voltage:
690 Volt
Widths:
45 mm
SoneparProductId:
SKU_US_26590637
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 240V 50/60Hz AC control circuit, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LAD4RCU; LAD4VU; LAD9ET1S; LAD6K10M; LADN226; LADN116; LADN406; LAD9ET1; LAD6K10F; LADN206; LAD6K10B; LADN316; LADT26; LADR06; LADN026; LADR26; LAD6K10E; LAD8N116; LA9D93; LADR46; LADT46; LAD6K10U - Cross Sell Products: LC1D09M7 - Spare Part Products: LXD1U7
