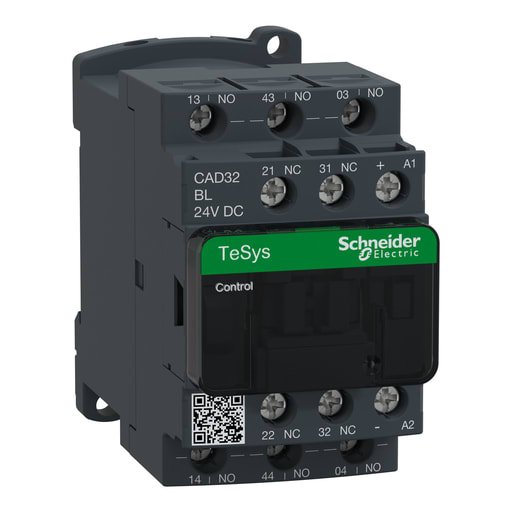

Square-D / Schneider - Square D CAD32BL 24 VDC 10 Amp 5-Pole 3NO 2NC IEC Control Relay

Essential specifications

12-Digit UPC - 389110407085
Amperage - 10 Amp AT <= 60 ?.C
Applications - Control circuit
Catalog Number - CAD32BL
Country of Origin - USA

Packaging

1 ea

EAN

03389110407082

Part #

227641

Catalog #

CAD32BL

Commercial reference

CAD32BL

12-Digit UPC:

389110407085

Amperage:

10 Amp AT <= 60 ?.C

Applications:

Control circuit

Catalog Number:

CAD32BL

Country of Origin:

USA

Depths:

93 mm

ERP_productname:

SQD CAD32BL RELAY 600V 10AMP TESYS + OPTIONS

Enclosure:

IP2X CONFORMING TO VDE 0106

Family Brand Name:

Schneider Electric

Heights:

77 mm

Size:

3.66 in

Sub Brand:

CAD;TeSys CAD

Tc Connection:

SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END

Type:

Control relay

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_69989695

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN11; LADN20; LAD8N11; LADT2; LADN02; LADT0; LAD8N20; LADS2; LADR2; LADR0; LAD9ET1S; LADR4; LAD4DDL; LADT4; LADC22; LAD6K10M; LADN10; LAD8N02; LAD9ET1; LAD6K10F; LADN01; LAD6K10B; LA1DX20; LA1DX02; LA1DZ31; LA1DY20; LAD6K10E; LA1DZ40; LA9D93; LAD6K10U - Cross Sell Products: LC1D09M7
