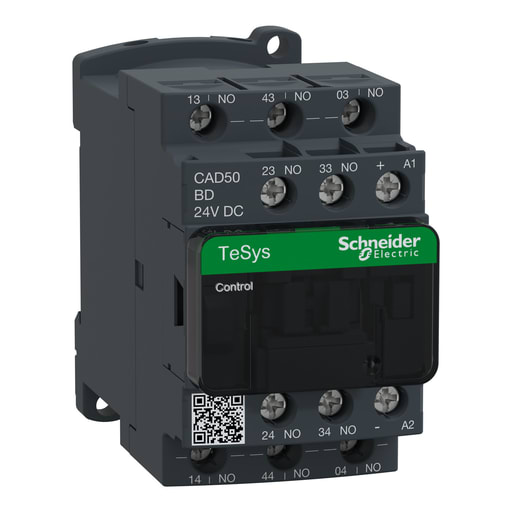

Square-D / Schneider - Square D CAD50BD 24 VDC 10 Amp 5-Pole 5NO IEC Control Relay

Essential specifications

12-Digit UPC - 389110405586
Amperage - 10 Amp AT <= 60 ?.C
Applications - Control circuit
Catalog Number - CAD50BD
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110405583

Part #

219307

Catalog #

CAD50BD

Commercial reference

CAD50BD

12-Digit UPC:

389110405586

Amperage:

10 Amp AT <= 60 ?.C

Applications:

Control circuit

Catalog Number:

CAD50BD

Country of Origin:

Indonesia

Depths:

93 mm

ERP_productname:

SQD CAD50BD 10A 600V RELAY

Enclosure:

IP2X FRONT FACE CONFORMING TO VDE 0106

Family Brand Name:

Schneider Electric

Heights:

77 mm

Size:

3.66 in

Sub Brand:

TESYS

Tc Connection:

SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END

Type:

Control relay

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_26345158

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LADN11; LADN20; LADT2; LADN40; LADN31; LADN02; LADT0; LADS2; LADR2; LADR0; LADN04; LADN13; LAD9ET1S; LADR4; LAD4DDL; LADT4; LADN22S; LADC22; LAD6K10M; LADN10; LAD9ET1; LAD6K10F; LADN01; LAD6K10B; LA1DX20; LA1DX02; LA1DZ31; LA1DY20; LAD6K10E; LA1DZ40; LA9D93; LAD6K10U - Cross Sell Products: LC1D09M7
