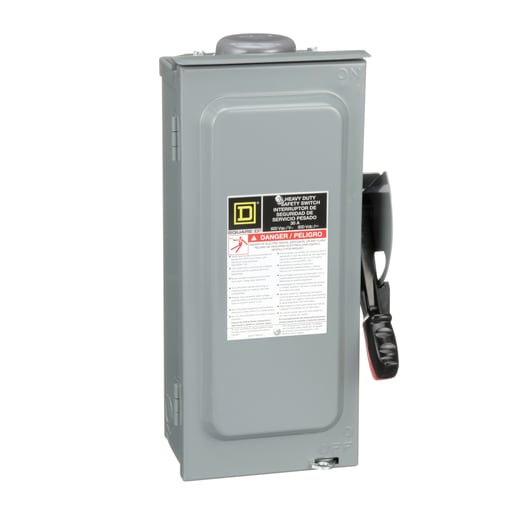

Square-D / Schneider - Square D CH223NRB 240 Volt 100 Amp 15 Hp 2-Pole 3-Wire NEMA 3R Fusible Heavy Duty Safety Switch

12-Digit UPC:

785901994930

Amperage:

100 Amp

Applications:

HEAVY DUTY

Catalog Number:

CH223NRB

Conductor Size:

12-1/0 AWG (AL)/14-1/0 AWG (CU)

Country of Origin:

USA

Depths:

6.38 Inch

Disconnect Type:

Fusible disconnect

ERP_productname:

SQD CH223NRB SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 100A, 240 VAC/250VDC, 2 POLES, 30 HP, NEMA 3R, BOLT ON PROVISION, NEUTRAL

Enclosure:

3R

Enclosure Material:

Stainless Steel

Family Brand Name:

Square D

Heights:

21-1/4 Inch

Mounting Type:

Surface

NEMA Size:

3R

Number of Poles:

2 Pole

Size:

21.25 IN,6.38 IN,8.5 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER,LUGS

Type:

SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT

Voltage:

240 Volt

Widths:

8.5 in

Wire Size:

AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper

SoneparProductId:

SKU_US_26461434
