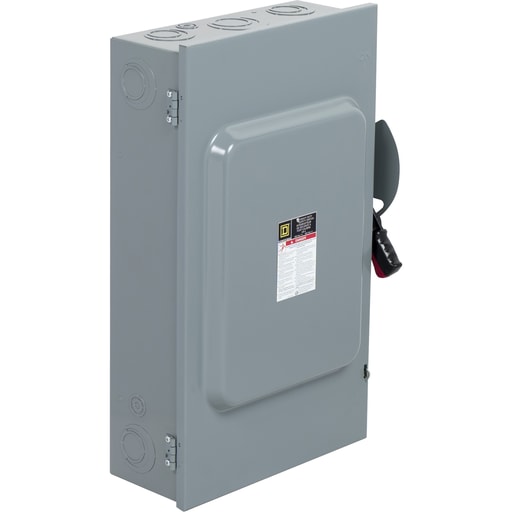

Square-D / Schneider - Square D CH364 600 VAC/VDC 200 Amp 150 Hp 3-Pole NEMA 1 Fusible Heavy Duty Safety Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901995395

  • Amperage - 200 Amp

  • Applications - HEAVY DUTY

  • Catalog Number - CH364

  • Conductor Size - 6 AWG-250 kcmil

Packaging

  • 1 ea

EAN

00785901995395

Part #

103463

Catalog #

CH364

Commercial reference

CH364

12-Digit UPC:

785901995395

Amperage:

200 Amp

Applications:

HEAVY DUTY

Catalog Number:

CH364

Conductor Size:

6 AWG-250 kcmil

Country of Origin:

USA

Depths:

8-1/4 Inch

Disconnect Type:

Fusible disconnect

ERP_productname:

SQD CH364 SWITCH FUSIBLE HD 600V 200A 3P NEMA1

Enclosure:

1

Enclosure Material:

Stainless Steel

Family Brand Name:

Square D

Heights:

29 Inch

Mounting Type:

Surface

NEMA Size:

1

Number of Poles:

3 Pole

Size:

18.5 IN,29 IN,8.25 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 6...250 KCMIL COPPER OR ALUMINIUM,LUGS

Type:

SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT

Voltage:

600 Volt

Widths:

18.5 in

Wire Size:

AWG 6...250 kcmil copper or aluminium

SoneparProductId:

SKU_US_26460779

Safety switch, heavy duty, fusible, 200A, 600VAC/VDC, 3 poles, 150HP, NEMA 1
