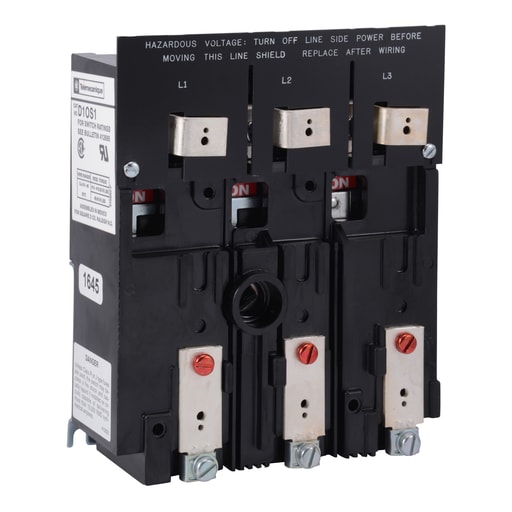

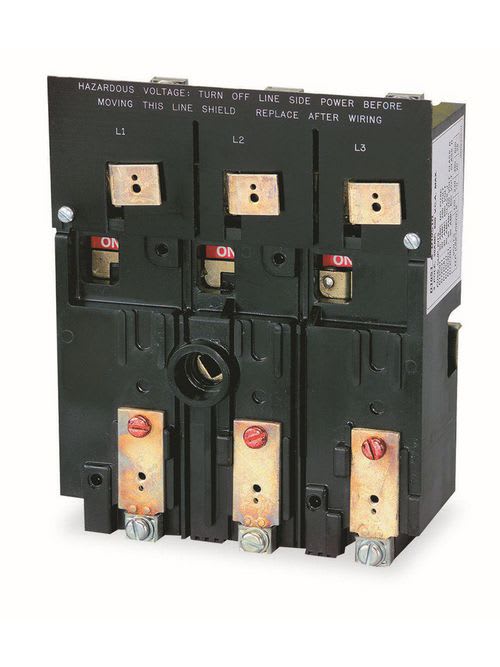

Square-D / Schneider - Square D D10S1 600 VAC 30 Amp 25 Hp Non-Fusible Disconnect Switch

Essential specifications

12-Digit UPC - 785901118558
Actuator - D11 HANDLE OPERATOR (SOLD SEPARATELY)
Amperage - 30 Amp
Applications - DISCONNECT SWITCH, 30A RATED NEMA SIZE 0-1
Catalog Number - D10S1

Packaging

1 ea

EAN

00785901118558

Part #

132878

Catalog #

D10S1

Commercial reference

D10S1

12-Digit UPC:

785901118558

Actuator:

D11 HANDLE OPERATOR (SOLD SEPARATELY)

Amperage:

30 Amp

Applications:

DISCONNECT SWITCH, 30A RATED NEMA SIZE 0-1

Catalog Number:

D10S1

Country of Origin:

Mexico

Current:

30 Amp

ERP_productname:

SQD D10S1 DISCONNECT SWITCH 600VAC 30A D10

Family Brand Name:

Square D

Mounting Type:

Door

NEMA Size:

0,1

Number of Poles:

3 Pole

Size:

0-1

Sub Brand:

SCHNEIDER ELECTRIC

Tc Connection:

DIRECT

Type:

DISCONNECT SWITCH

Voltage:

600 Volt

SoneparProductId:

SKU_US_26458998

The D10 disconnect switch is operated by a cast metal handle operator that is lockable in the Off position. This 30 A disconnect switch is designed to work with NEMA size 0 and 1 starters. This disconnect switch is without any fuse clips or shorting straps. Disconnect switch is without service entrance rating. Disconnect switch has horsepower ratings of 5 HP at 208 VAC, 10 HP at 240 VAC, 20 HP at 480 VAC and 25 HP at 600 VAC. Switch is UL component recognized and CSA certified.
