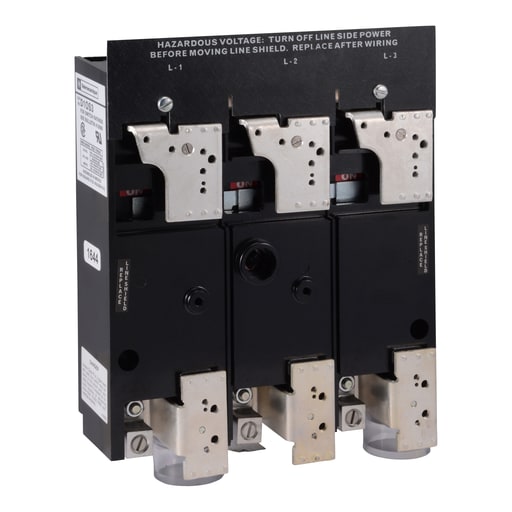

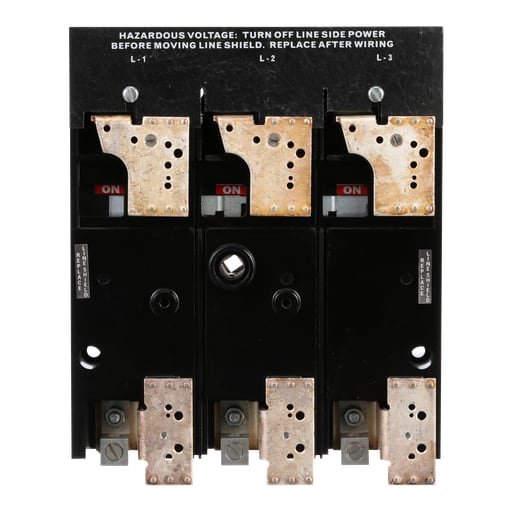

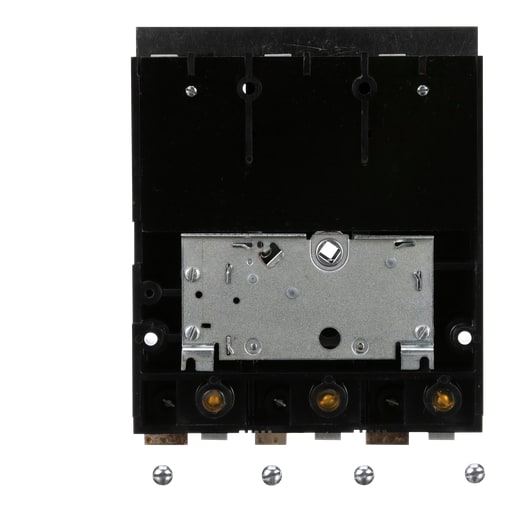

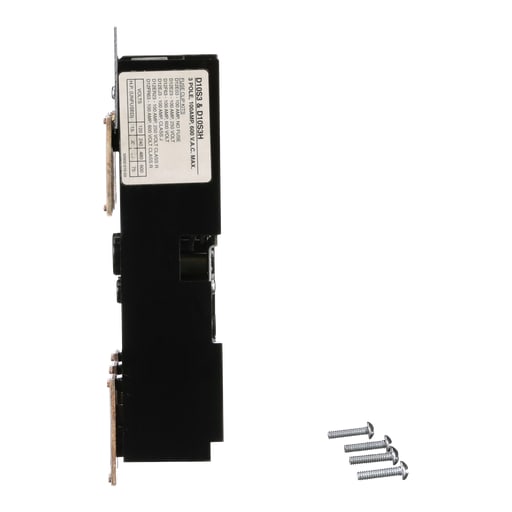

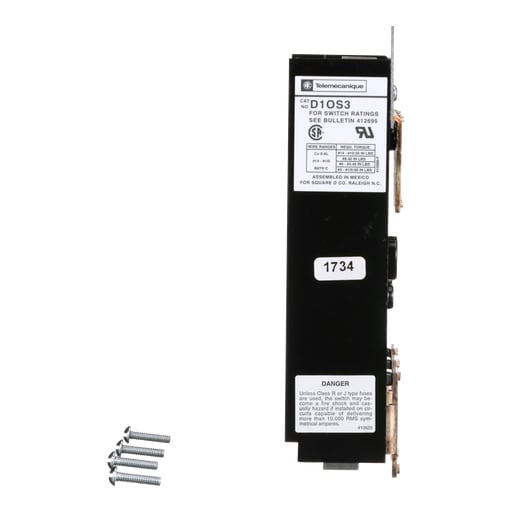

Square-D / Schneider - Square D D10S3 600 VAC 100 Amp 75 Hp Non-Fusible Disconnect Switch

Essential specifications

12-Digit UPC - 785901118619
Actuator - D11 HANDLE OPERATOR (SOLD SEPARATELY)
Amperage - 100 Amp
Applications - DISCONNECT SWITCH, 100A RATED NEMA SIZE 3
Catalog Number - D10S3

Packaging

1 ea

EAN

00785901118619

Part #

103758

Catalog #

D10S3

Commercial reference

D10S3

12-Digit UPC:

785901118619

Actuator:

D11 HANDLE OPERATOR (SOLD SEPARATELY)

Amperage:

100 Amp

Applications:

DISCONNECT SWITCH, 100A RATED NEMA SIZE 3

Catalog Number:

D10S3

Country of Origin:

Mexico

Current:

100 Amp

ERP_productname:

SQD D10S3 DISCONNECT SWITCH 600VAC 100A D10

Family Brand Name:

Square D

Mounting Type:

Door

NEMA Size:

Number of Poles:

3 Pole

Size:

Sub Brand:

SCHNEIDER ELECTRIC

Tc Connection:

DIRECT

Type:

DISCONNECT SWITCH

Voltage:

600 Volt

SoneparProductId:

SKU_US_26475888

D10 disconnect switches are operated by a cast metal handle operator that is lockable in the Off position. This 100A disconnect switch is designed to work with NEMA size 3 starters. This disconnect switch is without any fuse clips or shorting straps. Disconnect switch is without service entrance rating. Disconnect switch has horsepower ratings of 15 HP at 120 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is UL component recognized and CSA certified. Switch is UL component recognized and CSA certified.
