Square-D / Schneider - Square D D11SF4 200 Amp Safety Switch Rotary Handle Operator Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901118800
Actuator - ROTARY OPERATOR
Amperage - 30/60/100/200 Amp
Applications - NEMA 1/3/3R/4/12 enclosures
Catalog Number - D11SF4
Packaging
1 ea
EAN
00785901118800
Part #
179965
Catalog #
D11SF4
Commercial reference
D11SF4
12-Digit UPC:
785901118800
Actuator:
ROTARY OPERATOR
Amperage:
30/60/100/200 Amp
Applications:
NEMA 1/3/3R/4/12 enclosures
Catalog Number:
D11SF4
Country of Origin:
Mexico
ERP_productname:
SQD D11SF4 DISCONNECT SW ROTARY OPERATOR 6 D10 DOOR
Enclosure:
NEMA 1/3/3R/4/12
Family Brand Name:
Square D
Size:
FOR INTERIOR DEPTH 5.6256 INCHES
Type:
Handle and Shaft Kit
SoneparProductId:
SKU_US_26369998

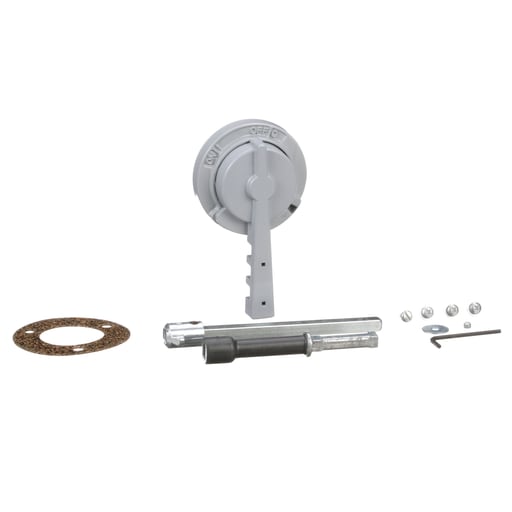

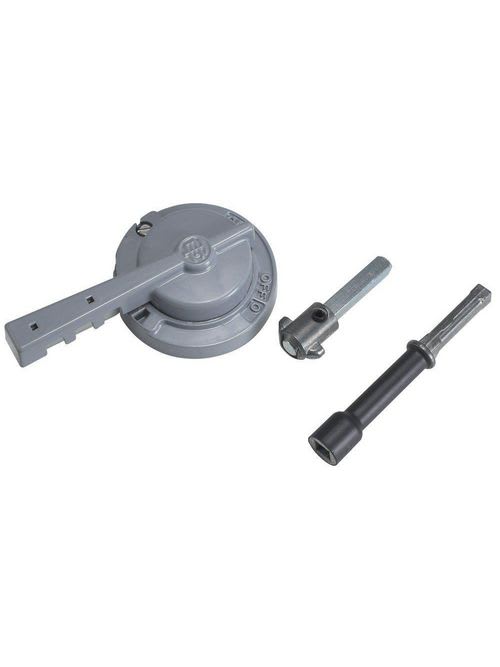

The D11SF variable depth rotary handle operating mechanism is for enclosures with an interior depth of 5.625 to 6 inches. The cast metal handle operator that is lockable in the Off position This door mounting rotary handle operator is NEMA Type 1, 3, 3R, 4, and 12 rated. The handle is UL component recognized.
