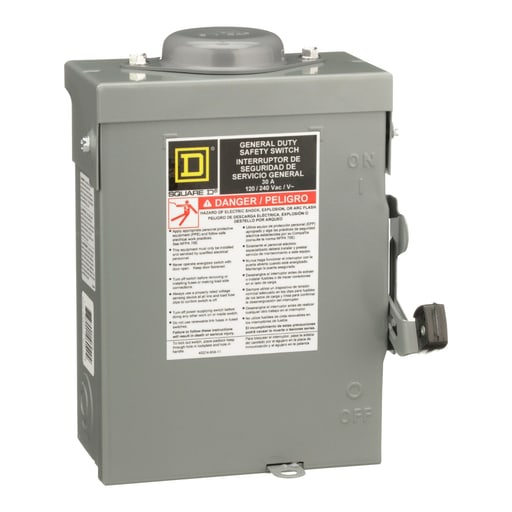

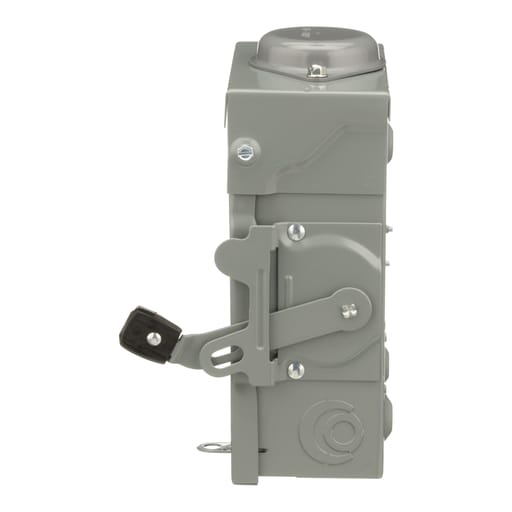

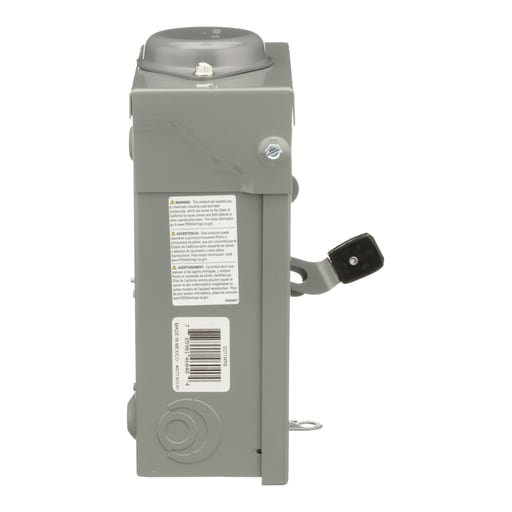

Square-D / Schneider - Square D D211NRB 120/240 Volt 30 Amp 2-Pole NEMA 3R Fusible General Duty Safety Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901460404

  • Amperage - 30 Amp

  • Applications - GENERAL DUTY

  • Catalog Number - D211NRB

  • Conductor Size - 12-6 AWG (AL)/14-6 AWG (CU)

Packaging

  • 1 ea

EAN

00785901460404

Part #

146747

Catalog #

D211NRB

Commercial reference

D211NRB

12-Digit UPC:

785901460404

Amperage:

30 Amp

Applications:

GENERAL DUTY

Catalog Number:

D211NRB

Conductor Size:

12-6 AWG (AL)/14-6 AWG (CU)

Country of Origin:

Mexico

Current:

30 Amp

Depths:

3.63 Inch

ERP_productname:

SQD D211NRB 30A-240V-3SN RT SW

Enclosure:

3R

Enclosure Material:

Steel

Enclosure Rating:

3R

Family Brand Name:

Square D

Heights:

9-1/4 Inch

Material:

Steel

Mounting Type:

Surface

NEMA Size:

3R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Size:

3.63 in

Sub Brand:

General duty

Tc Connection:

Lugs

Type:

Fusible disconnect switch;Single Throw Safety Switch

Voltage:

120 Volt

Widths:

7.25 in

Wire Size:

AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium

SoneparProductId:

SKU_US_26344882

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a two pole, 30A, fusible disconnect with a 120VAC voltage rating. This switch has a factory installed neutral and a NEMA 3R enclosure and is surface mounted. This safety switch accepts plug fuses only. This switch comes with lugs suitable for aluminum or copper conductors. These general duty switches are UL listed. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PK3GTA1; B075; B100; B125; B150; B200; B250; H075; H100; H200; BCAP
