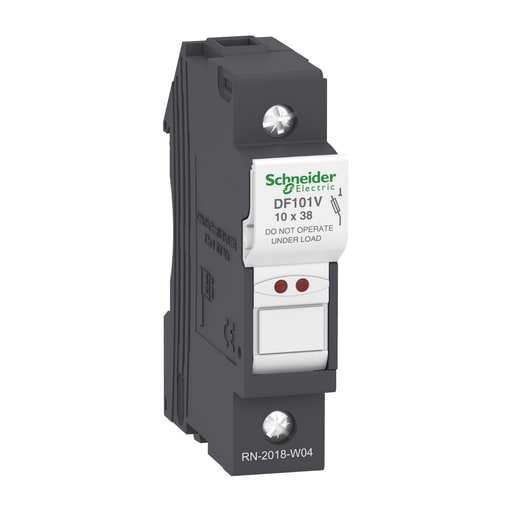

Square-D / Schneider - Square D DF101V FUSEHOLDER 600V 30AMP 1POLE 10X38MM

Essential specifications

12-Digit UPC - 389119407291
Amperage - 32 Amp
Applications - 10 x 38 mm
Catalog Number - DF101V
Country of Origin - France

Packaging

12 ea

EAN

03389119407298

Part #

148995

Catalog #

DF101V

Commercial reference

DF101V

12-Digit UPC:

389119407291

Amperage:

32 Amp

Applications:

10 x 38 mm

Catalog Number:

DF101V

Country of Origin:

France

Depths:

61 mm

ERP_productname:

SQD DF101V FUSEHOLDER 600V 30AMP 1POLE 10X38MM

Family Brand Name:

Schneider Electric

Heights:

79.5 mm

Size:

2.40 in

Sub Brand:

TeSys DF

Tc Connection:

SCREW CLAMP TERMINALS 1 1-16 MMA.RIGID- SCREW CLAMP TERMINALS 2 1-6 MMA.RIGID- SCREW CLAMP TERMINALS 1 1-16 MMA.FLEXIBLE WITH OR WITHOUT- SCREW CLAMP TERMINALS 2 1-6 MMA.FLEXIBLE WITH OR WITHOUT

Type:

Fuse carrier

Voltage:

690 Volt

Widths:

17.5 mm

SoneparProductId:

SKU_US_29873399

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. It provides blown fuse indication by LED. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: Cancer - www.P65Warnings.ca.gov
