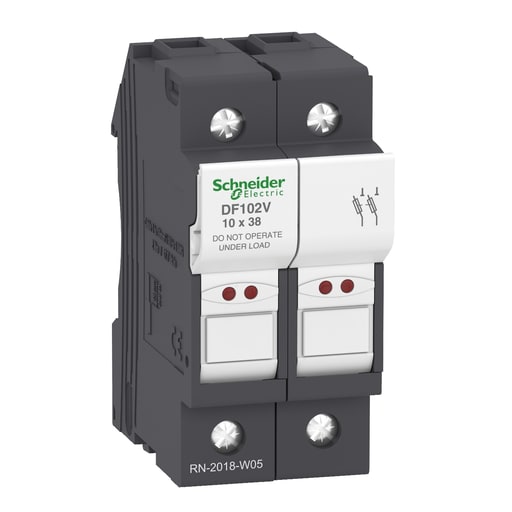

Square-D / Schneider - Square D DF102V FUSEHOLDER 600V 30AMP 2POLES

Essential specifications

12-Digit UPC - 389119407314
Amperage - 32 Amp
Applications - 10 x 38 mm
Catalog Number - DF102V
Country of Origin - USA

Packaging

1 ea

EAN

03389119407311

Part #

149023

Catalog #

DF102V

Commercial reference

DF102V

12-Digit UPC:

389119407314

Amperage:

32 Amp

Applications:

10 x 38 mm

Catalog Number:

DF102V

Country of Origin:

USA

Depths:

61 mm

ERP_productname:

SQD DF102V FUSEHOLDER 600V 30AMP 2POLES 10X38MM

Family Brand Name:

Schneider Electric

Heights:

79.5 mm

Size:

2.40 in

Sub Brand:

TeSys DF

Tc Connection:

SCREW CLAMP TERMINALS 1 1-16 MMA.RIGID- SCREW CLAMP TERMINALS 2 1-6 MMA.RIGID- SCREW CLAMP TERMINALS 1 1-16 MMA.FLEXIBLE WITH OR WITHOUT- SCREW CLAMP TERMINALS 2 1-6 MMA.FLEXIBLE WITH OR WITHOUT

Type:

Fuse carrier

Voltage:

690 Volt

Widths:

35 mm

SoneparProductId:

SKU_US_29688016

TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. It provides blown fuse indication by LED. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: Cancer - www.P65Warnings.ca.gov
