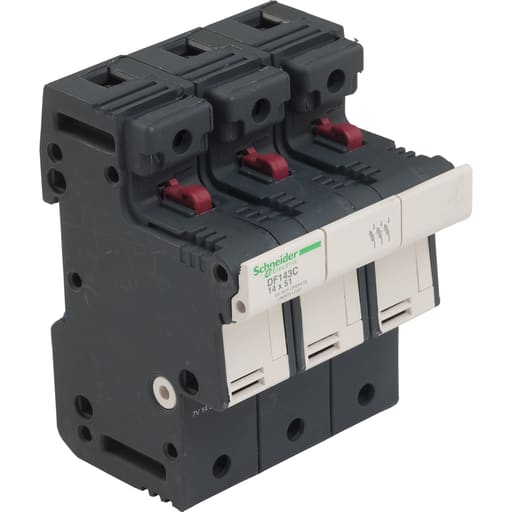

Square-D / Schneider - Square D DF143C FUSEHOLDER 600V 50AMP 3POLES

Essential specifications

12-Digit UPC - 389119407413
Amperage - 50 Amp
Applications - 14 x 51 mm
Catalog Number - DF143C
Country of Origin - Tunisia

Packaging

1 ea

EAN

03389119407410

Part #

204403

Catalog #

DF143C

Commercial reference

DF143C

12-Digit UPC:

389119407413

Amperage:

50 Amp

Applications:

14 x 51 mm

Catalog Number:

DF143C

Country of Origin:

Tunisia

Depths:

76.5 mm

ERP_productname:

SQD DF143C FUSE CARRIER TESYS DF, 3P 50A, FUSE SIZE 14X51 MM

Family Brand Name:

Schneider Electric

Heights:

110.8 mm

Size:

3.01 in

Sub Brand:

TeSys DF

Tc Connection:

SCREW CLAMP TERMINALS 1 2.5-25 MMA.RIGID- SCREW CLAMP TERMINALS 2 2.5-10 MMA.RIGID- SCREW CLAMP TERMINALS 1 2.5-25 MMA.FLEXIBLE WITH OR WITHOUT- SCREW CLAMP TERMINALS 2 2.5-10 MMA.FLEXIBLE WITH OR WITHOUT

Type:

Fuse carrier

Voltage:

690 Volt

Widths:

79 mm

SoneparProductId:

SKU_US_32253126

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links with stricker up to 50A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF14AM* (to be ordered separately). Compact (79mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with striker (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh). Prop 65: WARNING: Cancer - www.P65Warnings.ca.gov
