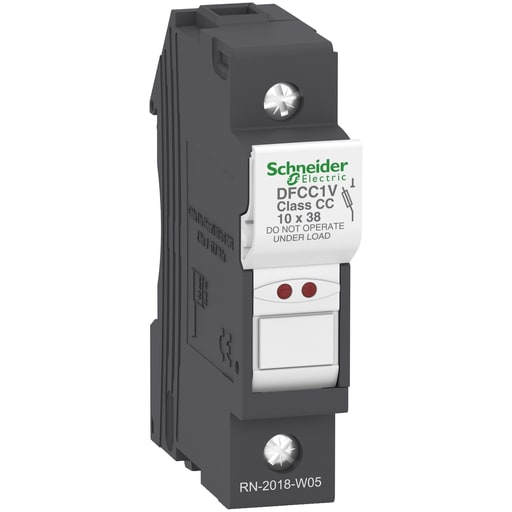

Square-D / Schneider - Square D DFCC1V 17.5 x 88.5 mm 690 VAC 30 Amp 1-Pole Rail Mount Fuse Holder

Essential specifications

12-Digit UPC - 389118321703
Amperage - 30 Amp
Applications - CC,FUSE CARTRIDGE
Catalog Number - DFCC1V
Country of Origin - France

Packaging

1 ea

EAN

03389118321700

Part #

135635

Catalog #

DFCC1V

Commercial reference

DFCC1V

12-Digit UPC:

389118321703

Amperage:

30 Amp

Applications:

CC,FUSE CARTRIDGE

Catalog Number:

DFCC1V

Country of Origin:

France

Depths:

61 mm

ERP_productname:

SQD DFCC1V FUSEHOLDER 600V 30AMP 1POLE CC FUSE

Family Brand Name:

Schneider Electric

Heights:

79.5 mm

Size:

2.40 in

Sub Brand:

TeSys DF

Tc Connection:

SCREW CLAMP TERMINALS 1 1-16 MMA.RIGID- SCREW CLAMP TERMINALS 2 1-6 MMA.RIGID- SCREW CLAMP TERMINALS 1 1-16 MMA.FLEXIBLE WITH OR WITHOUT- SCREW CLAMP TERMINALS 2 1-6 MMA.FLEXIBLE WITH OR WITHOUT

Type:

Fuse carrier

Voltage:

600 Volt

Widths:

17.5 mm

SoneparProductId:

SKU_US_26780406

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. It provides blown fuse indication by LED. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (UL recognized, CSA), Green Premium product (RoHS/REACh). Prop 65: WARNING: Cancer - www.P65Warnings.ca.gov
