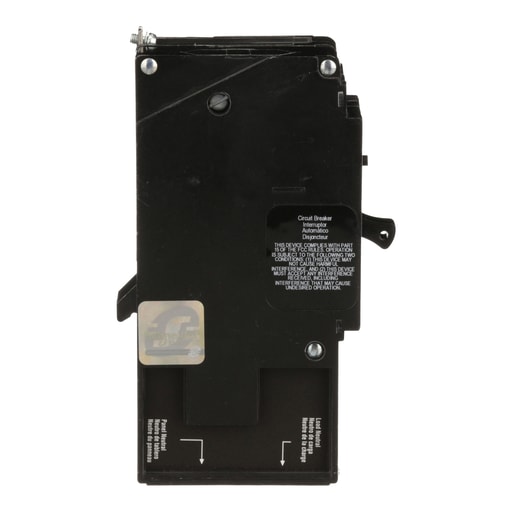

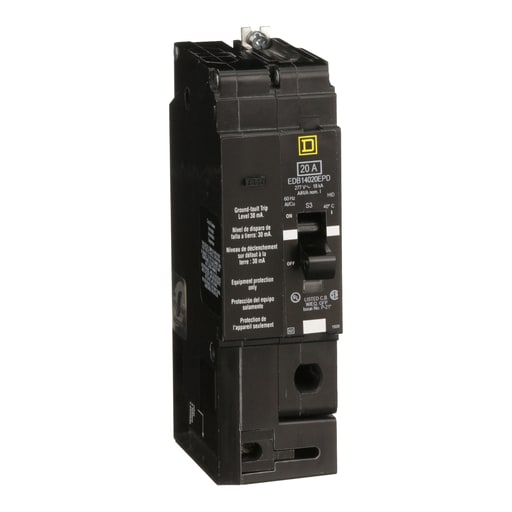

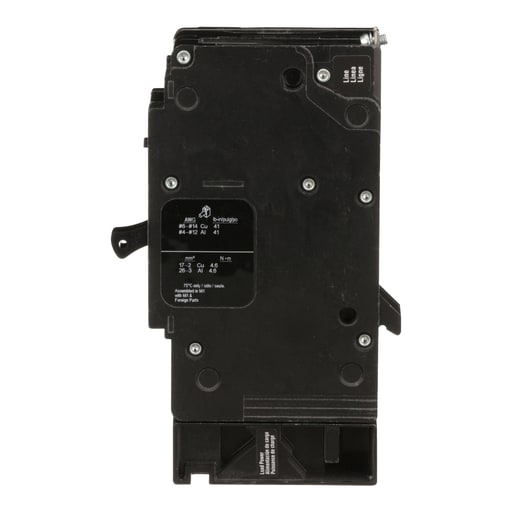

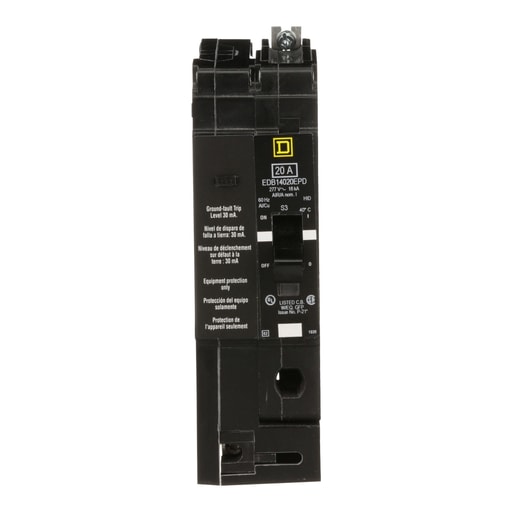

Square-D / Schneider - Square D EDB14020EPD 277 Volt 20 Amp Miniature Circuit Breaker

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: N150MH; NF430L6C; NF442L2C; NF442L2TVS412C; NF442L2TVS416C; NF442L4TVS412C; NF442L4TVS416C; NF442L6C; NF454L2; NF454L4C; NF466L2; NF466L2C; NF466L4; NF466L6C; NF484L4; NF484L4C; N400M; NF430L2C; EDPA; NF430L4C; HPAFD; NF442L4C; EDPAF; NF430L1C; ECB2HT; NF442L2; ECB3HT; NF430L2; AL30FD; NF418L1C; CU100FD; NF418L1; NF442L4; NF442L1C; NF430L4; NF430L1; NF484L6C; NF466L4C
