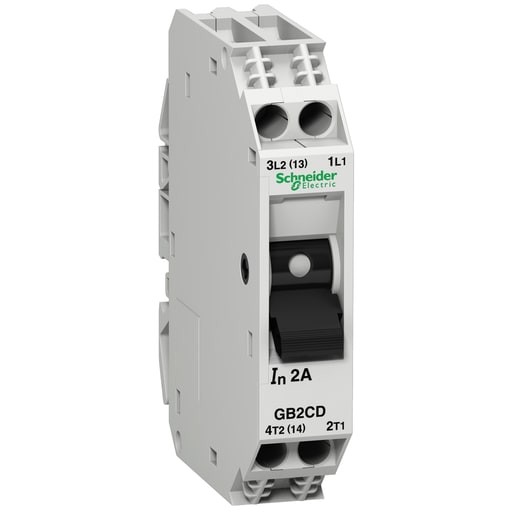

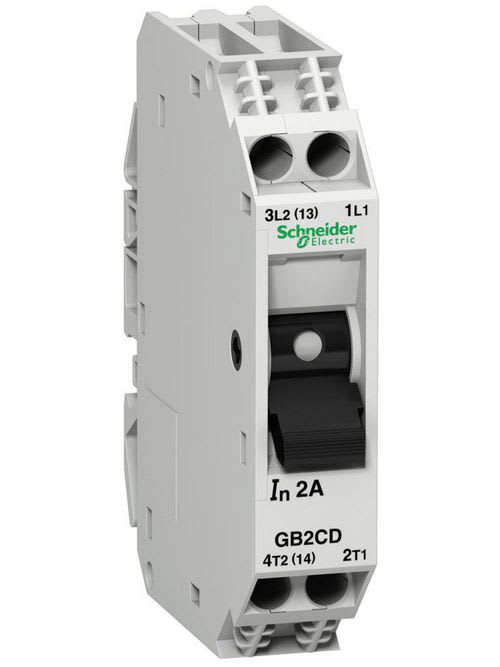

Square-D / Schneider - Square D GB2CD08 2-Pole 3 Amp 300 VAC Thermal Magnetic Circuit Protector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901326519
Amperage - 3 Amp
Applications - Control
Catalog Number - GB2CD08
Country of Origin - France
Packaging
6 ea
EAN
03389110214741
Part #
416369
Catalog #
GB2CD08
Commercial reference
GB2CD08
12-Digit UPC:
785901326519
Amperage:
3 Amp
Applications:
Control
Catalog Number:
GB2CD08
Country of Origin:
France
Depths:
67 mm
ERP_productname:
SQD GB2CD08 TESYS GB2 THERMAL MAGNETIC CIRCUIT PROTECTOR, 1 P + N, 3 A, ID = 40 A
Enclosure:
IP20 CONFORMING TO IEC 60529
Family Brand Name:
Schneider Electric
Heights:
74 mm
Mounting Type:
Clips
Number of Poles:
1P + N
Sub Brand:
TESYS
Type:
Circuit breaker
Voltage:
250 Volt
Widths:
15 mm
SoneparProductId:
SKU_US_26304262
TeSys GB circuit breaker, 2 poles (1P+N), 3A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 40A (13 In) and breaking capacity Icu 3kA@240V. It can also be used for protection of DC loads up to 3A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. Multi standards certified (IEC, UL, CSA). Prop 65: WARNING: Cancer - www.P65Warnings.ca.gov
