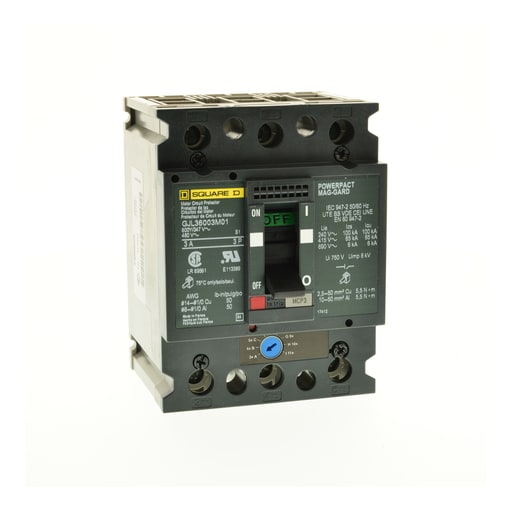

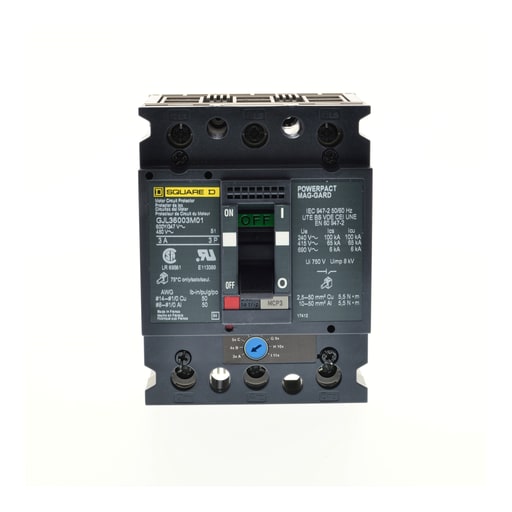

Square-D / Schneider - Square D GJL36003M01 3-Pole 3 Amp 600 Star/347 Volt Magnetic Motor Circuit Protector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901793588
Amperage - 3 Amp
Applications - PROVIDE MOTOR CIRCUIT PROTECTION WHEN INSTALLED AS PART OF A UL LISTED COMBINATION CONTROLLER HAVING MOTOR OVERLOAD PROTECTION
Catalog Number - GJL36003M01
Country of Origin - USA
Packaging
1 ea
EAN
00785901793588
Part #
125274
Catalog #
GJL36003M01
Commercial reference
GJL36003M01
12-Digit UPC:
785901793588
Amperage:
3 Amp
Applications:
PROVIDE MOTOR CIRCUIT PROTECTION WHEN INSTALLED AS PART OF A UL LISTED COMBINATION CONTROLLER HAVING MOTOR OVERLOAD PROTECTION
Catalog Number:
GJL36003M01
Country of Origin:
USA
Current:
3 Amp
ERP_productname:
SQD GJL36003M01 MOTOR CIRCUIT PROTECTOR 600Y/347V 3A
Family Brand Name:
Square D
Frame:
G-FRAME
Mounting Type:
Unit Mount
Number of Poles:
3 Pole
Sub Brand:
POWERPACT
Tc Connection:
LUGS (BOTH ENDS) #8 TO #1/0 AWG(AL) #14 TO #1/0 AWG(CU)
Type:
MOTOR CIRCUIT PROTECTOR
Voltage:
347 Volt
SoneparProductId:
SKU_US_26324802
