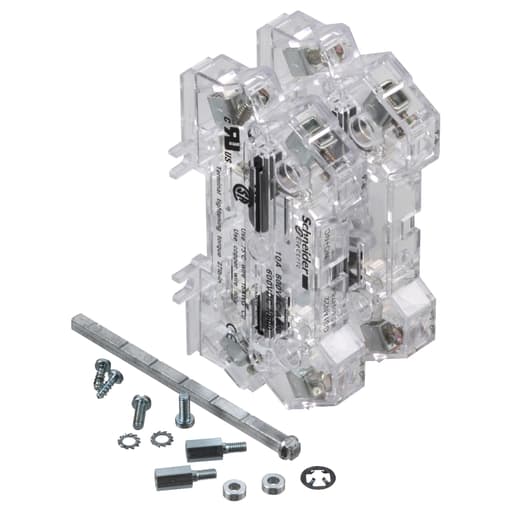

Square-D / Schneider - Square D GS1AN22 2NO 2NC 600 VAC 30 to 400 Amp Non-Fusible Disconnect Switch Auxiliary Contact

Essential specifications

12-Digit UPC - 389110563286
Amperage - 1 Amp 220 V DC-13-10 Amp 230 V AC-15-12 Amp 127 V AC-15-4 Amp 48 V DC-13-6 Amp 440 V AC-15-8 Amp 400/415 V AC-15-1.2 Amp 110 V DC-13,200 Amp-60 Amp-600 Amp-630 Amp-315 Amp-400 Amp-800 Amp-250 Amp-125 Amp-1250 Amp-160 Amp-50 Amp-63 Amp-100 Amp
Applications - O and I position signalling
Catalog Number - GS1AN22
Country of Origin - France

Packaging

1 ea

EAN

03389110563283

Part #

103567

Catalog #

GS1AN22

Commercial reference

GS1AN22

12-Digit UPC:

389110563286

Amperage:

1 Amp 220 V DC-13-10 Amp 230 V AC-15-12 Amp 127 V AC-15-4 Amp 48 V DC-13-6 Amp 440 V AC-15-8 Amp 400/415 V AC-15-1.2 Amp 110 V DC-13,200 Amp-60 Amp-600 Amp-630 Amp-315 Amp-400 Amp-800 Amp-250 Amp-125 Amp-1250 Amp-160 Amp-50 Amp-63 Amp-100 Amp

Applications:

O and I position signalling

Catalog Number:

GS1AN22

Country of Origin:

France

ERP_productname:

SQD GS1AN22 AUXILIARY CONTACTS, TESYS GS, 2NC + 2NO, INSTANTANEOUS, LEFT SIDE MOUNTING, FOR GS1-GS2 WITH FRONT/RIGHT HANDLE

Family Brand Name:

Schneider Electric

Sub Brand:

GS1AN

Type:

Auxiliary contact

SoneparProductId:

SKU_US_26660305

TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 2NC+2NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position signaling. Right-hand side mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation. Prop 65: WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
