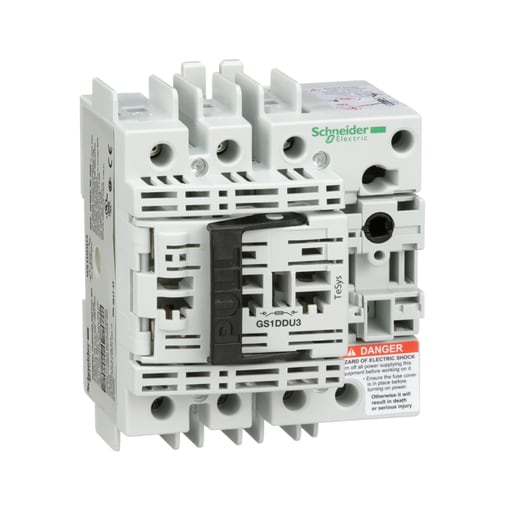

Square-D / Schneider - Square D GS1DDU3 600 VAC 30 Amp 3-Pole Class CC IP20 Copper Fusible Disconnect Switch

TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class CC fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
