Square-D / Schneider - Square D GV2MC02 NEMA 12 Surface Mount Manual Starter Enclosure

CopyCopy
Square-D / Schneider - Square D GV2MC02 NEMA 12 Surface Mount Manual Starter Enclosure

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389110213655

  • Applications - GV2ME

  • Catalog Number - GV2MC02

  • Country of Origin - Czechia

  • Depths - 84 mm

Packaging

  • 1 ea

EAN

03389110213652

Part #

201690

Catalog #

GV2MC02

Commercial reference

GV2MC02

12-Digit UPC:

389110213655

Applications:

GV2ME

Catalog Number:

GV2MC02

Country of Origin:

Czechia

Depths:

84 mm

ERP_productname:

SQD GV2MC02 GV2 ENCLS IP55

Enclosure:

IP55

Enclosure Type:

Surface mounting

Family Brand Name:

Schneider Electric

Heights:

147 mm

Size:

3.31 in

Sub Brand:

TESYS

Tc Connection:

CONDUIT CUTOUTS

Type:

GV2MC;Enclosure

Widths:

93 mm

SoneparProductId:

SKU_US_69876552

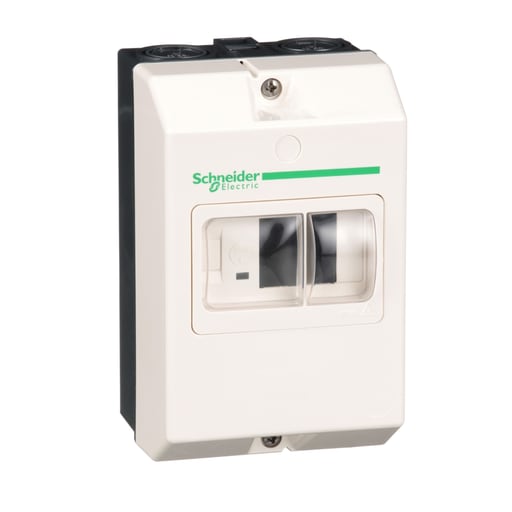

TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GV2K031; GV2K04; GVAX115; GVAX116; GVAX225; GVAX385 - Cross Sell Products: GV2ME01; GV2ME02; GV2ME03; GV2ME04; GV2ME05; GV2ME06; GV2ME07; GV2ME08; GV2ME10; GV2ME14; GV2ME16; GV2ME20; GV2ME21; GV2ME22
