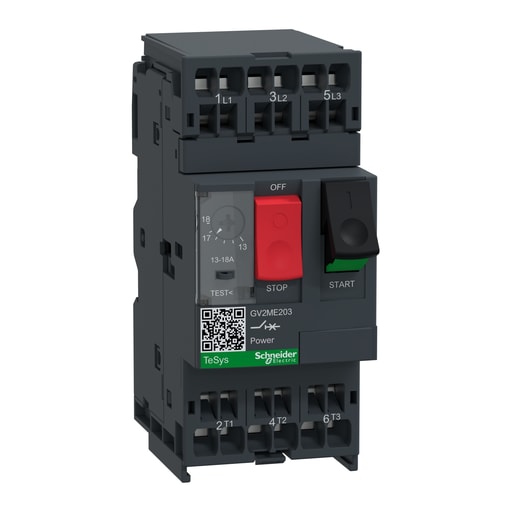

Square-D / Schneider - Square D GV2ME203 MANUAL STARTER 600VAC 18AMP IE

Essential specifications

12-Digit UPC - 389110346476
Amperage - 18 Amp
Applications - MOTOR
Catalog Number - GV2ME203
Color - Gray

Packaging

1 ea

EAN

03389110346473

Part #

385821

Catalog #

GV2ME203

Commercial reference

GV2ME203

12-Digit UPC:

389110346476

Amperage:

18 Amp

Applications:

MOTOR

Catalog Number:

GV2ME203

Color:

Gray

Country of Origin:

France

Depths:

78.5 mm

ERP_productname:

SQD GV2ME203 TESYS DECA MANUAL STARTER AND PROTECTOR, THERMAL MAGNETIC CIRCUIT PROTECTOR, PUSH BUTTONS, 13...18 A, SPRING TERMINALS

Enclosure:

IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

101 mm

Number of Poles:

3 Pole

Size:

101 MM,45 MM,78.5 MM

Sub Brand:

GV2ME,TESYS,TESYS GV2

Tc Connection:

SPRING TERMINALS 2 1-6 MMA. SOLID- SPRING TERMINALS 2 1.5-4 MMA. FLEXIBLE WITHOUT CABLE END

Type:

CIRCUIT BREAKER

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_31609859

TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 13-18A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GVAD1010; GVAE113; GVAD1001; GVAU385; GV2AF02; GVAS225; GVAU225; LAD311; LAD341; LAD31; GVAX385; GVAN113; GVAE203; LAD351; LAD324; GVAX225; GVAS385; LAD3B1; GVAU115; LAD322; LAD352; GVAX115 - Cross Sell Products: LC1D183P7; LC1D183BD; LC1D183B7; LC1D183E7; LC1D183F7
