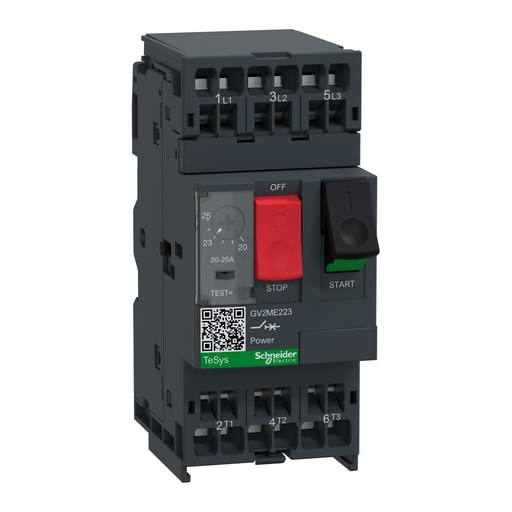

Square-D / Schneider - Square D GV2ME223 3-Pole 600 VAC 25 Amp Manual Starter

Essential specifications

12-Digit UPC - 389110346490
Amperage - 25 Amp
Applications - MOTOR
Catalog Number - GV2ME223
Color - Gray

Packaging

1 ea

EAN

03389110346497

Part #

189025

Catalog #

GV2ME223

Commercial reference

GV2ME223

12-Digit UPC:

389110346490

Amperage:

25 Amp

Applications:

MOTOR

Catalog Number:

GV2ME223

Color:

Gray

Country of Origin:

France

Depths:

78.5 mm

ERP_productname:

SQD GV2ME223 TESYS DECA MANUAL STARTER AND PROTECTOR, THERMAL MAGNETIC CIRCUIT PROTECTOR, PUSH BUTTONS, 20...25 A, SPRING TERMINALS

Enclosure:

IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

101 mm

Number of Poles:

3 Pole

Size:

101 MM,45 MM,78.5 MM

Sub Brand:

TESYS TESYS GV2

Tc Connection:

SPRING TERMINALS 2 CABLE(S) 1...6 MMA. - CABLE STIFFNESS : SOLIDSPRING TERMINALS 2 CABLE(S) 1.5...4 MMA. - CABLE STIFFNESS : FLEXIBLE - WITHOUT CABLE END

Type:

CIRCUIT BREAKER GV2ME

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_26849036

TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 20-25A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GVAD1010; GVAE113; GVAD1001; GVAU385; GV2AF02; GVAS225; GVAU225; LAD311; LAD341; LAD31; GVAX385; GVAN113; GVAE203; LAD351; LAD324; GVAX225; GVAS385; LAD3B1; GVAU115; LAD322; LAD352; GVAX115 - Cross Sell Products: LC1D253BD; LC1D253B7; LC1D253P7; LC1D253F7; LC1D253E7
