Square-D / Schneider - Square D GV2MP02 NEMA 12 Flush Mount Manual Starter Enclosure
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901832720
Applications - GV2ME
Catalog Number - GV2MP02
Country of Origin - Czechia
Depths - 83 mm
Packaging
1 ea
EAN
03389110213621
Part #
133023
Catalog #
GV2MP02
Commercial reference
GV2MP02
12-Digit UPC:
785901832720
Applications:
GV2ME
Catalog Number:
GV2MP02
Country of Origin:
Czechia
Depths:
83 mm
ERP_productname:
SQD GV2MP02 FLUSH BOX IP55
Enclosure:
IP55 WITH PROTECTIVE COVER
Enclosure Type:
Flush mounting
Family Brand Name:
Schneider Electric
Heights:
140 mm
Size:
REDUCED SIZE
Sub Brand:
TESYS
Tc Connection:
CONDUIT CUTOUTS
Type:
ENCLOSURE
Widths:
106.5 mm
SoneparProductId:
SKU_US_26342879

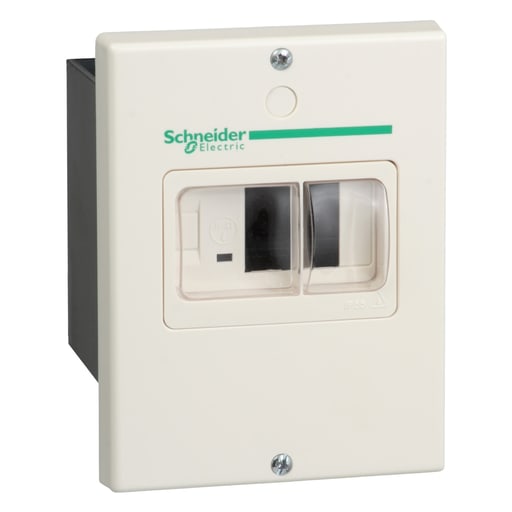

TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Flush mounting enclosure, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection front face. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GV2K031; GV2K04; GVAX115; GVAX116; GVAX225; GVAX385 - Cross Sell Products: GV2ME01; GV2ME02; GV2ME03; GV2ME04; GV2ME05; GV2ME06; GV2ME07; GV2ME08; GV2ME10; GV2ME14; GV2ME16; GV2ME20; GV2ME21; GV2ME22
