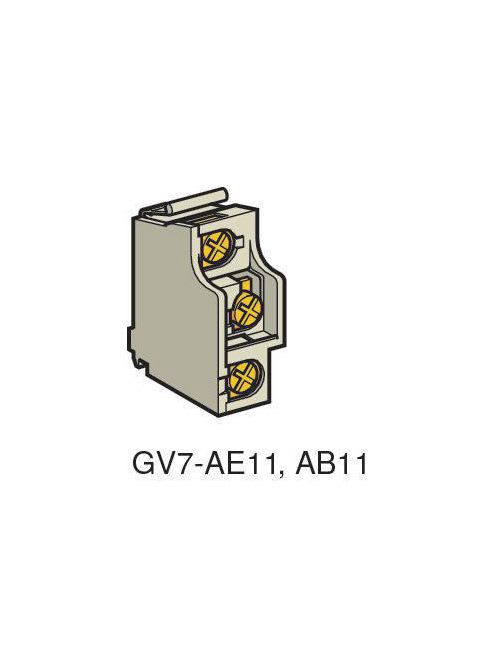

Square-D / Schneider - Square D GV7AB11 1NO 1NC 690 VAC 250 VDC 6 Amp Manual Starter Auxiliary Contact

Essential specifications

12-Digit UPC - 785901617488
Applications - SIGNALLING
Catalog Number - GV7AB11
Country of Origin - France
ERP_productname - SQD GV7AB11 MANUAL STARTER AUX CONTACTS 300VAC 1AMP

Packaging

1 ea

EAN

03389110617481

Part #

189533

Catalog #

GV7AB11

Commercial reference

GV7AB11

12-Digit UPC:

785901617488

Applications:

SIGNALLING

Catalog Number:

GV7AB11

Country of Origin:

France

ERP_productname:

SQD GV7AB11 MANUAL STARTER AUX CONTACTS 300VAC 1AMP

Family Brand Name:

Schneider Electric

Sub Brand:

GV7AB,TESYS,TESYS GV5 MOTOR CIRCUIT BREAKER- TESYS GV6 MOTOR CIRCUIT BREAKER- TESYS GV7 MOTOR CIRCUIT BREAKER

Tc Connection:

SCREW CLAMPS TERMINALS 1 1.5-1.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMPS TERMINALS 1 1.5-1.5 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMPS TERMINALS 1 1.5-1.5 MMA.RIGID

Type:

AUXILIARY CONTACT BLOCK

Voltage:

110 Volt

SoneparProductId:

SKU_US_26638176

TeSys GV auxiliary contact block, for motor circuit breakers GV5, GV6, GV7. 1C/O contact, it performs Open/Close OF function or trip alarm SD function or electrical fault indication, depending of its location in the circuit breaker. Rated for operation up to 5A/690V AC and 2A/110V DC, low level contacts with minimum operational conditions 5mA/12V. To be plugged inside the circuit breaker, 4 cavities are possible (2 for OF functions, 1 for SD function, 1 for electrical fault), connection by screw terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
