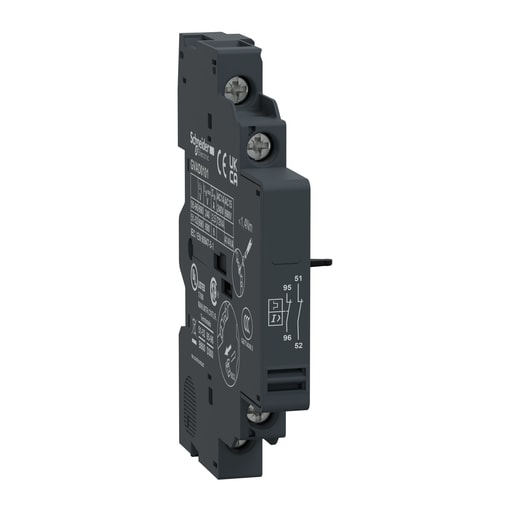

Square-D / Schneider - Square D GVAD0101 2NC 690 VAC 240 VDC 6 Amp Manual Starter Auxiliary Contact

Essential specifications

12-Digit UPC - 389110343529
Amperage - 6 Amp (2.5 Amp FOR FAULT SIGNALLING)
Applications - GV3L-GV2P-GV2LE-GV2RT-GV2L-GV2ME-GV3P
Catalog Number - GVAD0101
Color - Gray

Packaging

1 ea

EAN

03389110343526

Part #

219326

Catalog #

GVAD0101

Commercial reference

GVAD0101

12-Digit UPC:

389110343529

Amperage:

6 Amp (2.5 Amp FOR FAULT SIGNALLING)

Applications:

GV3L-GV2P-GV2LE-GV2RT-GV2L-GV2ME-GV3P

Catalog Number:

GVAD0101

Color:

Gray

Country of Origin:

Czechia

Depths:

66 mm

ERP_productname:

SQD GVAD0101 IEC AUX CONTACT BLOCK

Family Brand Name:

Schneider Electric

Heights:

89 mm

Size:

66 MM,89 MM,9.3 MM

Sub Brand:

GVAD,TESYS

Tc Connection:

SCREW CLAMP TERMINALS 1 1-2.5 MMA.SOLID- SCREW CLAMP TERMINALS 2 1-2.5 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-2.5 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.75-2.5 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.75-1.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 0.75-1.5 MMA.FLEXIBLE WITH CABLE END

Type:

AUXILIARY CONTACT BLOCK

Voltage:

240 Volt

Widths:

9.3 mm

SoneparProductId:

SKU_US_26452022

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NC instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GV2ME08; GV2ME10; GV2ME14; GV2ME07; GV2ME06; GV2ME16; GV2ME20; GV2ME05; GV2ME22; GV2ME21; GV2ME32; GV3P40; GV2ME04; GV2P08; GV2P10; GV3P50; GV2P14; GV3P65; GV2P07; GV2P16; GV2P06; GV2ME03; GV2P20; GV2P32; GV2P05; GV2P22; GV3P80; GV2ME02; GV2L14; GV2P21; GV2P04; GV3P32; GV2L08; GV2LE14; GV2LE10; GV2L16; GV2L10; GV2L22; GV3P73; GV2RT10; GV3P25; GV2L20; GV2RT07; GV2RT08; GV2ME01; GV2LE16; GV2LE22; GV2LE08; GV2LE20; GV2L07; GV3L40; GV2RT06; GV2L32; GV3L50; GV2RT14; GV3L65; GV2P03; GV2LE07; GV2RT16; GV3P18; GV2RT20; GV3P13; GV2RT05; GV2P02; GV2LE32; GV2RT03; GV2P01; GV2L06; GV3L32; GV2L05; GV2RT04; GV2LE06; GV2RT21; GV2LE05; GV2L03; GV2L04; GV3L25; GV3L73; GV2LE04; GV2LE03
