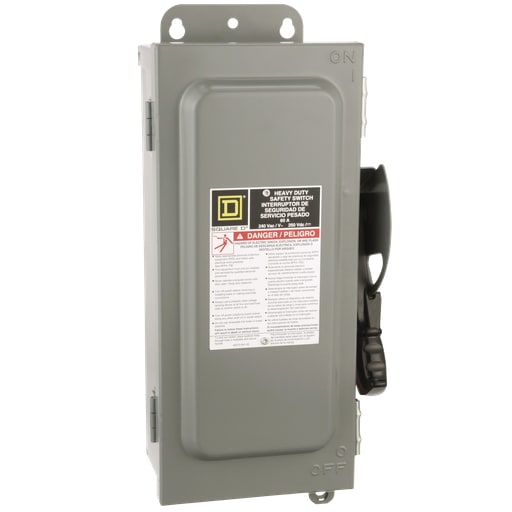

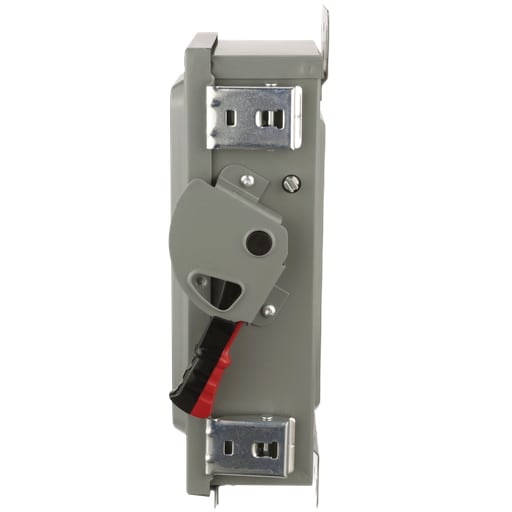

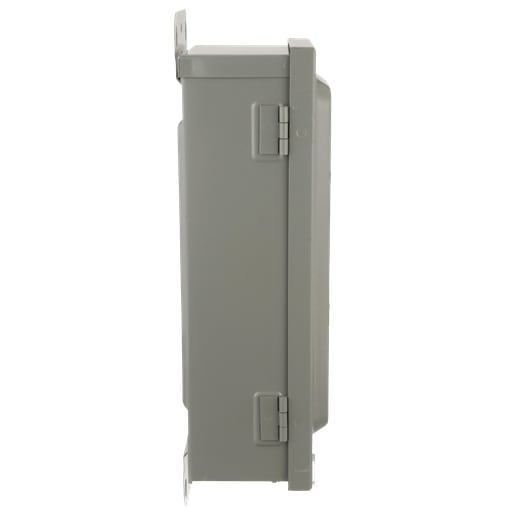

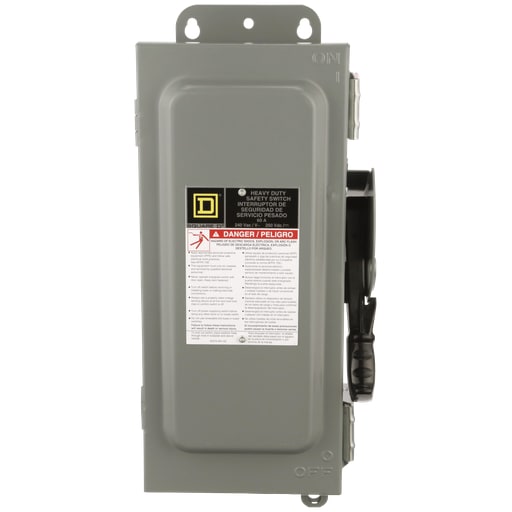

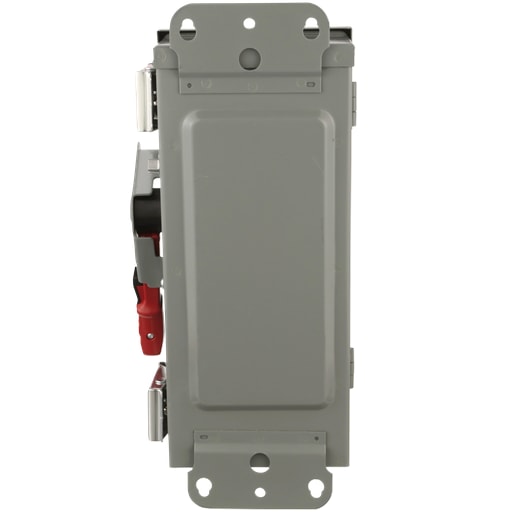

Square-D / Schneider - Square D H222AWK 240 VAC 60 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901477822
Amperage - 60 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H222AWK
Conductor Size - 12-3 AWG (AL)/14-3 AWG (CU)
Packaging
1 ea
EAN
00785901477822
Part #
129924
Catalog #
H222AWK
Commercial reference
H222AWK
12-Digit UPC:
785901477822
Amperage:
60 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H222AWK
Conductor Size:
12-3 AWG (AL)/14-3 AWG (CU)
Country of Origin:
USA
Current:
60 Amp
Depths:
4.96 Inch
Disconnect Type:
Fusible disconnect NULL
ERP_productname:
SQD H222AWK SW FUSIBLE HD 240V 60A 2P NEMA12 NO KO
Enclosure:
12,3R
Enclosure Material:
Stainless Steel
Family Brand Name:
Square D
Heights:
14.6 Inch
Mounting Type:
Surface
NEMA Size:
12,3R
Number of Phases:
3 Phase
Number of Poles:
2 Pole
Short Circuit Current:
10 kA
Size:
14.6 IN,4.96 IN,6.63 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 14...AWG 3 COPPER-AWG 12...AWG 3 ALUMINIUM,LUGS
Type:
SAFETY SWITCH
Voltage:
240 Volt
Wattage:
12 3R
Widths:
6.63 in
SoneparProductId:
SKU_US_26897646
