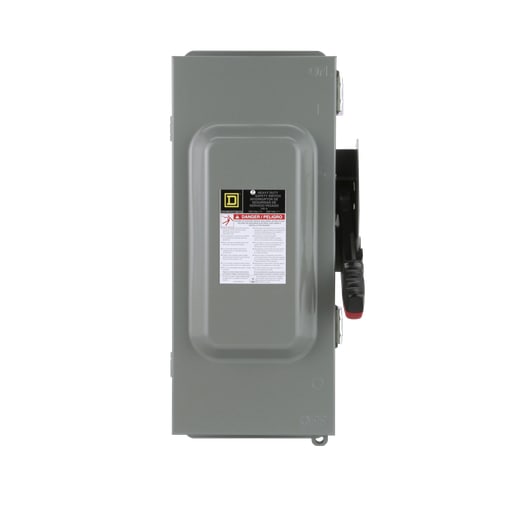

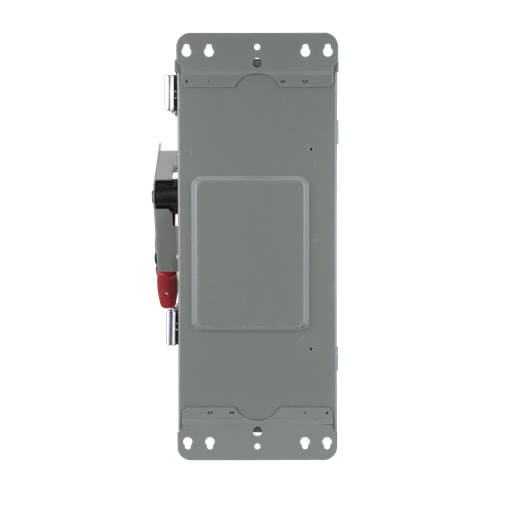

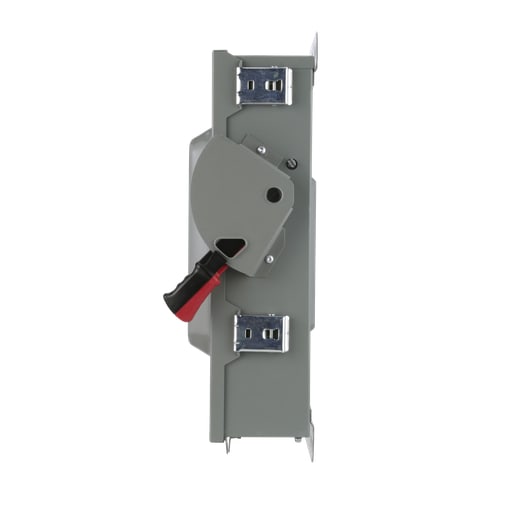

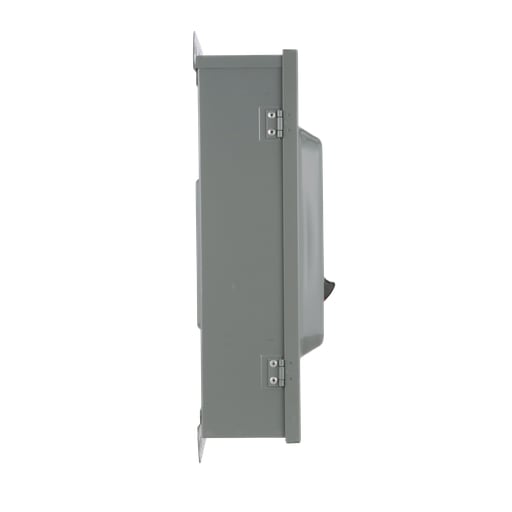

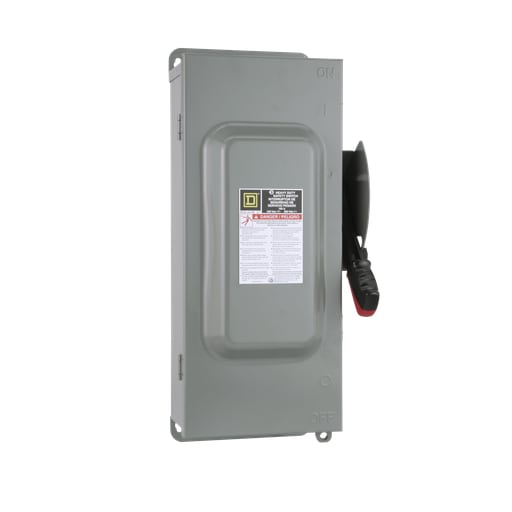

Square-D / Schneider - Square D H223AWK 240 VAC 100 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901478140
Amperage - 100 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H223AWK
Conductor Size - 12-1/0 AWG (AL)/14-1/0 AWG (CU)
Packaging
1 ea
EAN
00785901478140
Part #
246785
Catalog #
H223AWK
Commercial reference
H223AWK
12-Digit UPC:
785901478140
Amperage:
100 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H223AWK
Conductor Size:
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Country of Origin:
USA
Current:
100 Amp
Depths:
7 Inch
Disconnect Type:
Fusible disconnect NULL
ERP_productname:
SQD H223AWK SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 100A, 2 POLES, 30 HP, 240 VAC/250 VDC, NEMA 12
Enclosure:
12,3R
Enclosure Material:
Stainless Steel
Family Brand Name:
Square D
Heights:
20-1/2 Inch
Mounting Type:
Surface
NEMA Size:
12,3R
Number of Phases:
3 Phase
Number of Poles:
2 Pole
Short Circuit Current:
10 kA
Size:
20.5 IN,7 IN,9 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER,LUGS
Type:
SAFETY SWITCH
Voltage:
240 Volt
Wattage:
12 3R
Widths:
9 in
