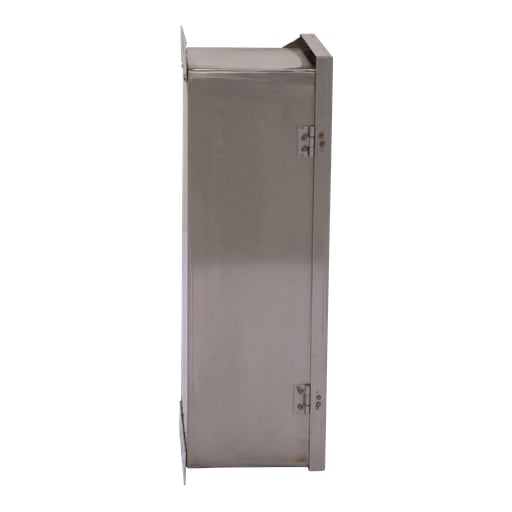

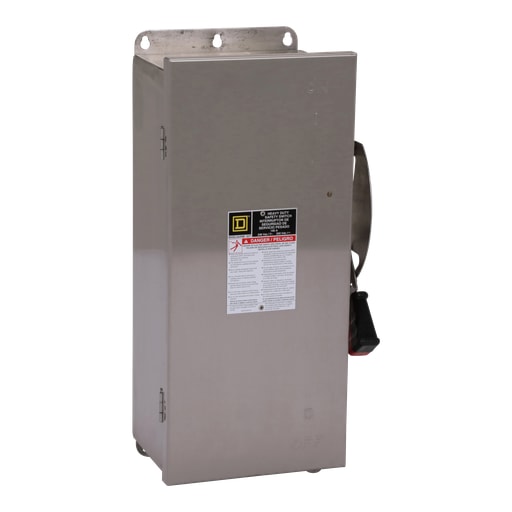

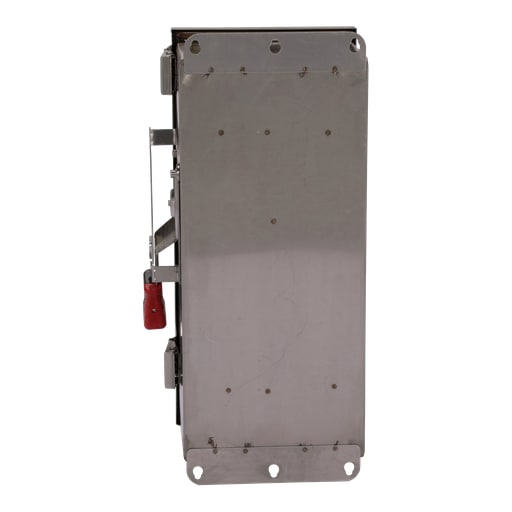

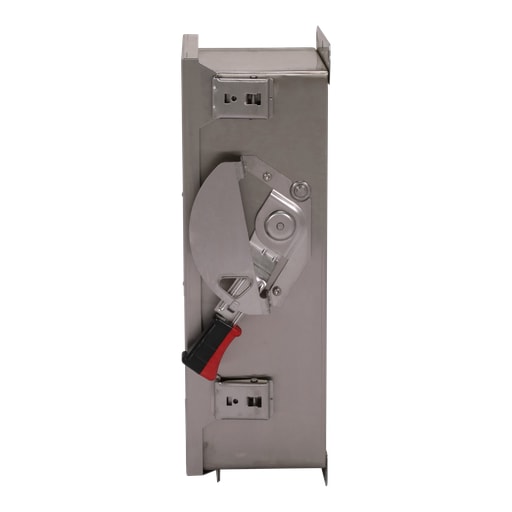

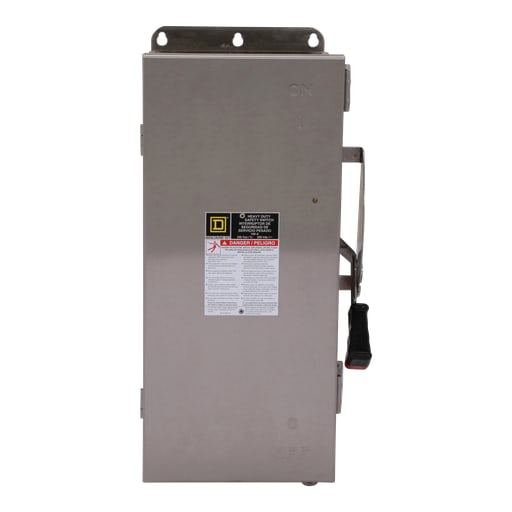

Square-D / Schneider - Square D H223DS 240 VAC 100 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Essential specifications

12-Digit UPC - 785901516507
Amperage - 100 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H223DS
Conductor Size - 12-1/0 AWG (AL)/14-1/0 AWG (CU)

Packaging

1 ea

EAN

00785901516507

Part #

233780

Catalog #

H223DS

Commercial reference

H223DS

12-Digit UPC:

785901516507

Amperage:

100 Amp

Applications:

HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

Catalog Number:

H223DS

Conductor Size:

12-1/0 AWG (AL)/14-1/0 AWG (CU)

Country of Origin:

USA

Current:

100 Amp

Depths:

6.97 Inch

Disconnect Type:

Fusible disconnect

ERP_productname:

SQD H223DS SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 100A, 2 POLES, 30HP, 240VAC/250VDC, NEMA 4, 4X, 5, 304 STEEL

Enclosure:

4,4X,5

Enclosure Material:

Stainless Steel

Enclosure Rating:

4, 4X, 5

Family Brand Name:

Square D

Heights:

20.82 Inch

Mounting Type:

Surface

NEMA Size:

4,4X,5

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Size:

20.82 IN,6.97 IN,9.36 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER,LUGS

Type:

SAFETY SWITCH

Voltage:

240 Volt

Wattage:

4 4X 5

Widths:

9.36 in

Wire Size:

AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper

SoneparProductId:

SKU_US_26898056

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 100A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 60 HP at 480 VAC three phase, 100 HP at 600 VAC three phase and 50 HP at 600 VDC. This switch has a 3 wire configuration and is rated for 12 to 1/0 AWG aluminum wire and 14 to 1/0 AWG copper wire. This device has enclosure rating of NEMA 4/4X/5 and it is made of stainless steel. It has a height of 20.82 in, width of 11.25 in and has a depth of 6.97 in. It is UL listed with the file E2875.
