Square-D / Schneider - Square D H224AWK 240 VAC 200 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Essential specifications

12-Digit UPC - 785901478225
Amperage - 200 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H224AWK
Conductor Size - 6 AWG-250 kcmil

Packaging

1 ea

EAN

00785901478225

Part #

201921

Catalog #

H224AWK

Commercial reference

H224AWK

12-Digit UPC:

785901478225

Amperage:

200 Amp

Applications:

HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

Catalog Number:

H224AWK

Conductor Size:

6 AWG-250 kcmil

Country of Origin:

USA

Current:

200 Amp

Depths:

8-3/4 Inch

Disconnect Type:

Fusible disconnect

ERP_productname:

SQD H224AWK SW FUSIBLE HD 240V 200A 2P NEMA12 NO KO

Enclosure:

12,3R

Enclosure Material:

Steel

Enclosure Rating:

3R, 12

Family Brand Name:

Square D

Heights:

29 Inch

Mounting Type:

Surface

NEMA Size:

12,3R

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Size:

17.25 IN,29 IN,8.75 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 6...250 KCMIL COPPER OR ALUMINIUM,LUGS

Type:

SAFETY SWITCH

Voltage:

240 Volt

Wattage:

12 3R

Widths:

17.25 in

Wire Size:

AWG 6...250 kcmil copper or aluminium

SoneparProductId:

SKU_US_26898129

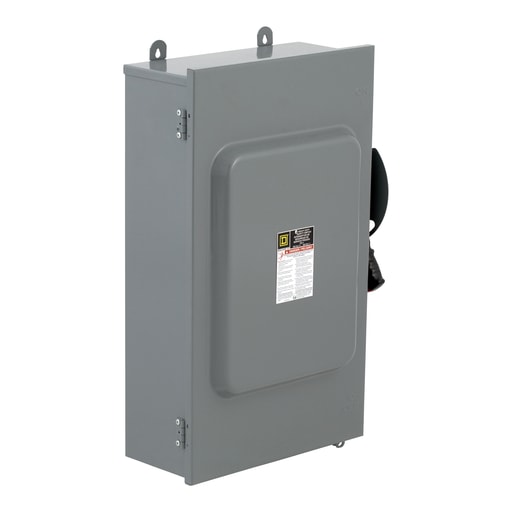

This is a Single Throw Safety Switch. This safety switch has a rated current of 200A and is 2 pole. This safety switch has a rated operational voltage of 240 VACat200 kA and 250 VDC at 10 kA. With a motor power of 15 hp. This heavy duty disconnect is surface mounted. This product complies with UL listed file E2875 standards. This product has a NEMA 3R/12 degree of protection. and os made of galvannealed steel. Dimensions for this disconnect are 29 in (H), 17.25 in (W), 8.75 in (D).
