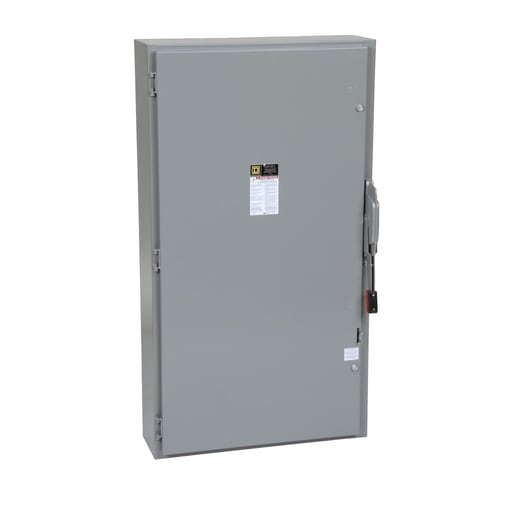

Square-D / Schneider - Square D H225N 240 VAC 400 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901450429

  • Amperage - 400 Amp

  • Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

  • Catalog Number - H225N

  • Conductor Size - 1/0 AWG-750 kcmil

Packaging

  • 1 ea

EAN

00785901450429

Part #

227688

Catalog #

H225N

Commercial reference

H225N

12-Digit UPC:

785901450429

Amperage:

400 Amp

Applications:

HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

Catalog Number:

H225N

Conductor Size:

1/0 AWG-750 kcmil

Country of Origin:

Mexico

Current:

400 Amp

Depths:

10.13 Inch

Disconnect Type:

Fusible disconnect

ERP_productname:

SQD H225N SW FUSIBLE HD 240V 400A 2P NEMA1/NEUTRAL

Enclosure:

1

Enclosure Material:

Steel

Enclosure Rating:

1

Family Brand Name:

Square D

Heights:

50-1/4 Inch

Mounting Type:

Surface

NEMA Size:

1

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Size:

10.13 IN,27.63 IN,50.25 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 1/0...750 KCMIL COPPER OR ALUMINIUM,LUGS

Type:

SAFETY SWITCH

Voltage:

240 Volt

Wattage:

1 Watt

Widths:

27.63 in

Wire Size:

AWG 1/0...750 kcmil copper or aluminium

SoneparProductId:

SKU_US_25764491

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 400A and has a NEMA 1 degree of protection. This fusible disconnect has a short circuit rating of 200kA@240VAC and has a neutral (factory installed). This safety switch has a steel enclosure and is surface mounted. This product is compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 1/0 / 750 kcmil, copper or aluminiumand has a tightening torque of 550-550 lbf in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 50.25 in (H), 27.63 in (W), 10.13 in (D). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: EIK40601; H225; H225R; H325; H325DS; H325NDS; EIK40602; HRK4060; PKOGTA2; B300; B400; BCAP; H300; H350; H400
