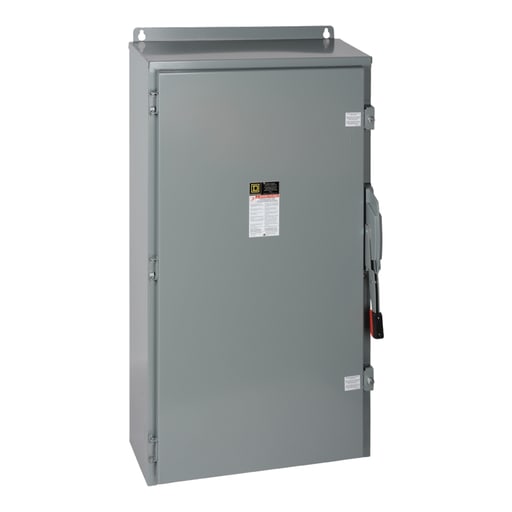

Square-D / Schneider - Square D H225NAWK 240 VAC 400 Amp 2-Pole Class R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901259374
Amperage - 400 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H225NAWK
Conductor Size - 1/0 AWG-750 kcmil
Packaging
1 ea
EAN
00785901259374
Part #
175363
Catalog #
H225NAWK
Commercial reference
H225NAWK
12-Digit UPC:
785901259374
Amperage:
400 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H225NAWK
Conductor Size:
1/0 AWG-750 kcmil
Country of Origin:
Mexico
Current:
400 Amp
Depths:
10.13 Inch
Disconnect Type:
Fusible disconnect
ERP_productname:
SQD H225NAWK SWITCH FUSIBLE HD 240V 400A 2P NEMA12
Enclosure:
12,3R
Enclosure Material:
Stainless Steel
Enclosure Rating:
3R, 12
Family Brand Name:
Square D
Heights:
46-1/4 Inch
Mounting Type:
Surface
NEMA Size:
12,3R
Number of Phases:
3 Phase
Number of Poles:
2 Pole
Short Circuit Current:
10 kA
Short Circuit Current Ratng:
10 kA
Size:
10.13 IN,26.25 IN,46.25 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 1/0...750 KCMIL COPPER OR ALUMINIUM,LUGS
Type:
SAFETY SWITCH
Voltage:
240 Volt
Wattage:
12 3R
Widths:
26.25 in
Wire Size:
AWG 1/0...750 kcmil copper or aluminium
SoneparProductId:
SKU_US_26897191
