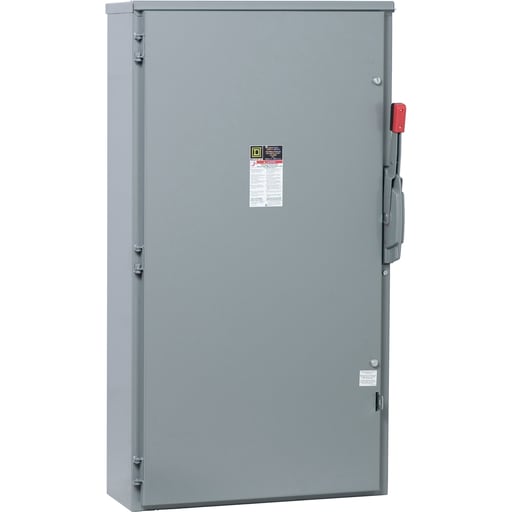

Square-D / Schneider - Square D H225R 240 VAC 400 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901259237
Amperage - 400 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H225R
Conductor Size - 1/0 AWG-750 kcmil
Packaging
1 ea
EAN
00785901259237
Part #
106533
Catalog #
H225R
Commercial reference
H225R
12-Digit UPC:
785901259237
Amperage:
400 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H225R
Conductor Size:
1/0 AWG-750 kcmil
Country of Origin:
USA
Current:
400 Amp
Depths:
10.13 Inch
Disconnect Type:
Fusible disconnect
ERP_productname:
SQD H225R SWITCH FUSIBLE HD 240V 400A 2P NEMA3R
Enclosure:
3R
Enclosure Material:
Stainless Steel
Enclosure Rating:
3R
Family Brand Name:
Square D
Heights:
50.31 Inch
Mounting Type:
Surface
NEMA Size:
3R
Number of Phases:
3 Phase
Number of Poles:
2 Pole
Short Circuit Current:
10 kA
Short Circuit Current Ratng:
10 kA
Size:
10.13 IN,27.88 IN,50.31 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 1/0...750 KCMIL COPPER OR ALUMINIUM,LUGS
Type:
SAFETY SWITCH
Voltage:
240 Volt
Wattage:
3R
Widths:
27.88 in
Wire Size:
AWG 1/0...750 kcmil copper or aluminium
SoneparProductId:
SKU_US_26620669
