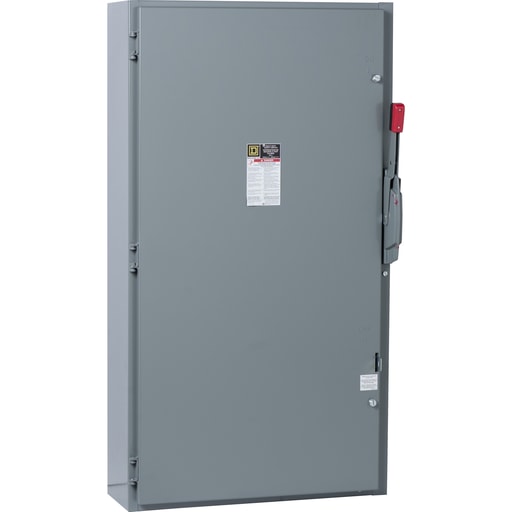

Square-D / Schneider - Square D H226 240 VAC 600 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

12-Digit UPC:

785901450399

Amperage:

600 Amp

Applications:

HEAVY DUTY

Catalog Number:

H226

Conductor Size:

3/0 AWG-500 kcmil

Country of Origin:

Mexico

Current:

600 Amp

Depths:

10.13 Inch

Disconnect Type:

Fusible disconnect NULL

ERP_productname:

SQD H226 SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 600A, 2 POLES, 200 HP, 240 VAC/250 VDC, NEMA 1

Enclosure:

1

Enclosure Material:

Stainless Steel

Family Brand Name:

Square D

Heights:

50-1/4 Inch

Mounting Type:

Surface

NEMA Size:

1

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Size:

10.13 IN,27.63 IN,50.25 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 3/0...500 KCMIL COPPER OR ALUMINIUM,LUGS

Type:

SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT

Voltage:

240 Volt

Widths:

27.63 in

SoneparProductId:

SKU_US_26750584
