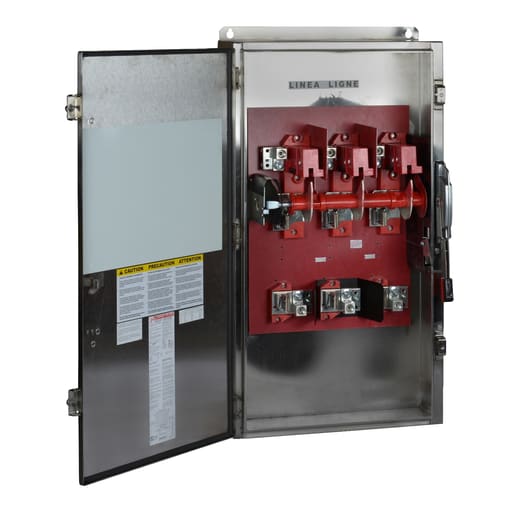

Square-D / Schneider - Square D H226NDS 240 VAC 600 Amp 2-Pole Class R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901333319
Amperage - 600 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H226NDS
Country of Origin - USA
Packaging
1 ea
EAN
00785901333319
Part #
287959
Catalog #
H226NDS
Commercial reference
H226NDS
12-Digit UPC:
785901333319
Amperage:
600 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H226NDS
Country of Origin:
USA
Depths:
10.13 Inch
ERP_productname:
SQD H226NDS SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 600A, 2 POLES, 200 HP, 240 VAC/250 VDC, NEMA 4, 4X, 5, 304 STEEL, NEUTRAL
Enclosure:
NEMA 3/3R/4/4X/12
Family Brand Name:
Square D
Heights:
46-1/4 Inch
Mounting Type:
Surface
Number of Phases:
3 Phase
Number of Poles:
2 Pole
Short Circuit Current:
10 kA
Short Circuit Current Ratng:
10 kA
Size:
10.13 IN,26.25 IN,46.25 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 3/0...500 KCMIL COPPER OR ALUMINIUM,LUGS
Type:
SAFETY SWITCH
Voltage:
240 Volt
Widths:
26.25 in
SoneparProductId:
SKU_US_26614375
