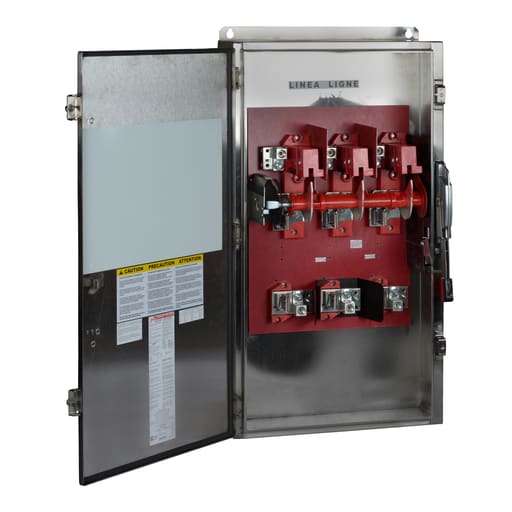

Square-D / Schneider - Square D H265DS 600 VAC 400 Amp 2-Pole Class R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901259411
Amperage - 400 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H265DS
Country of Origin - USA
Packaging
1 ea
EAN
00785901259411
Part #
115397
Catalog #
H265DS
Commercial reference
H265DS
12-Digit UPC:
785901259411
Amperage:
400 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H265DS
Country of Origin:
USA
Depths:
10.13 Inch
ERP_productname:
SQD H265DS SW FUSIBLE HD 600V 400A 2P NEMA12 NO KO
Enclosure:
NEMA 3/3R/4/4X/12
Family Brand Name:
Square D
Heights:
46-1/4 Inch
Mounting Type:
Surface
Number of Phases:
3 Phase
Number of Poles:
2 Pole
Short Circuit Current:
10 kA
Size:
10.13 IN,26.25 IN,46.25 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 1/0...750 KCMIL COPPER OR ALUMINIUM,LUGS
Type:
SAFETY SWITCH
Voltage:
600 Volt
Widths:
26.25 in
SoneparProductId:
SKU_US_26338347
