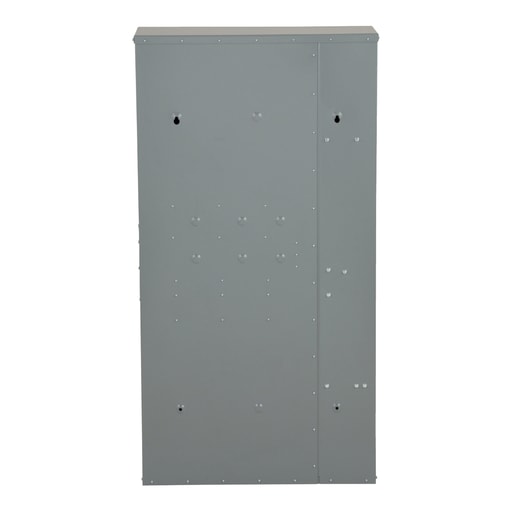

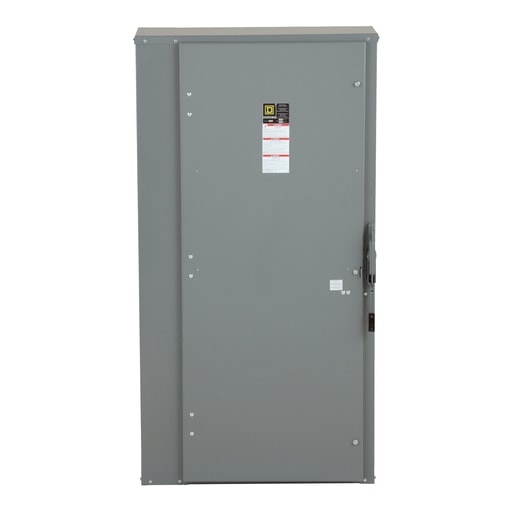

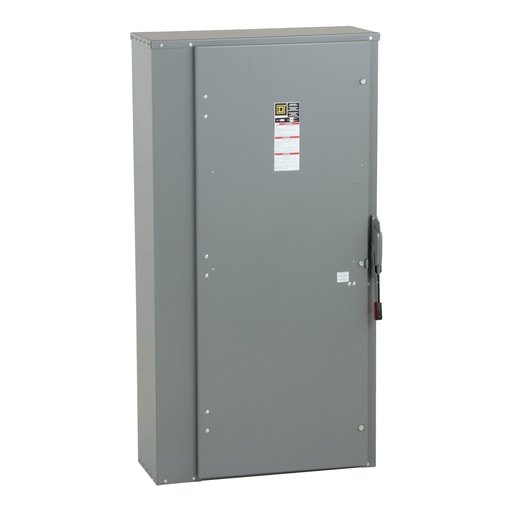

Square-D / Schneider - Square D H327N 240 VAC 800 Amp 3-Pole Class L Fusible Heavy Duty Safety Switch

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 400A with voltage of 240 VAC and 250 VDC. It is rated when using time delay fuses of 125 HP at 240 VAC three phase and 50 HP at 250 VDC. This switch has a 3 wire configuration and is rated for AWG 6 to 250 kcmil with aluminum and copper wire. This device has enclosure rating of NEMA 3R and it is made of galvannealed steel. It has a height of 50.31 in, width of 27.88 in and has a depth of 10.13 in. It is UL listed with the file E2875. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: EIK40601; H327R; EIK40602; H800SNE4; PKOGTA7; H8LKE2
