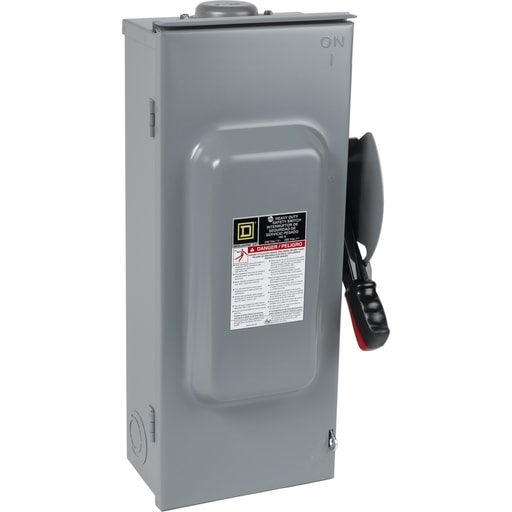

Square-D / Schneider - Square D H327R 240 VAC 800 Amp 3-Pole Class L Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901259213
Amperage - 800 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H327R
Conductor Size - 3/0 AWG-750 kcmil
Packaging
1 ea
EAN
00785901259213
Part #
372302
Catalog #
H327R
Commercial reference
H327R
12-Digit UPC:
785901259213
Amperage:
800 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H327R
Conductor Size:
3/0 AWG-750 kcmil
Country of Origin:
Mexico
Current:
800 Amp
Depths:
17-3/4 Inch
Disconnect Type:
Fusible disconnect
ERP_productname:
SQD H327R SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 800A, 3 WIRE, 3 POLE, 250HP, 240VAC/250VDC, NEMA 3R
Enclosure:
3R
Enclosure Material:
Stainless Steel
Enclosure Rating:
3R
Family Brand Name:
Square D
Heights:
69.13 Inch
Mounting Type:
Surface
NEMA Size:
3R
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Short Circuit Current:
200 kA
Short Circuit Current Ratng:
200 kA
Size:
17.75 IN,36.62 IN,69.13 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS
Type:
SAFETY SWITCH
Voltage:
240 Volt
Wattage:
3R
Widths:
36.62 in
Wire Size:
AWG 3/0...750 kcmil copper or aluminium
SoneparProductId:
SKU_US_26413779
