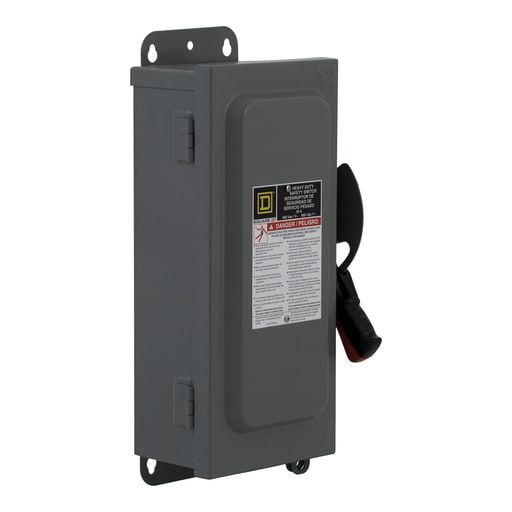

Square-D / Schneider - Square D H3612A 600 VAC 30 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

12-Digit UPC:

785901481973

Amperage:

30 Amp

Applications:

HEAVY DUTY

Catalog Number:

H3612A

Conductor Size:

12-6 AWG (AL)/14-6 AWG (CU)

Country of Origin:

USA

Current:

30 Amp

Depths:

7 Inch

Disconnect Type:

Fusible disconnect

ERP_productname:

SQD H3612A SWITCH FUSIBLE HD 30A NEMA 12K 60A-BOX

Enclosure:

12K

Enclosure Material:

Stainless Steel

Enclosure Rating:

12K

Family Brand Name:

Square D

Heights:

16-1/2 Inch

Material:

Steel

Mounting Type:

Surface

NEMA Size:

12K

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Size:

10.5 IN,16.5 IN,7 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

LUGS

Type:

SINGLE THROW SAFETY SWITCH

Voltage:

600 Volt

Widths:

10.5 in

Wire Size:

AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper

SoneparProductId:

SKU_US_26897953
