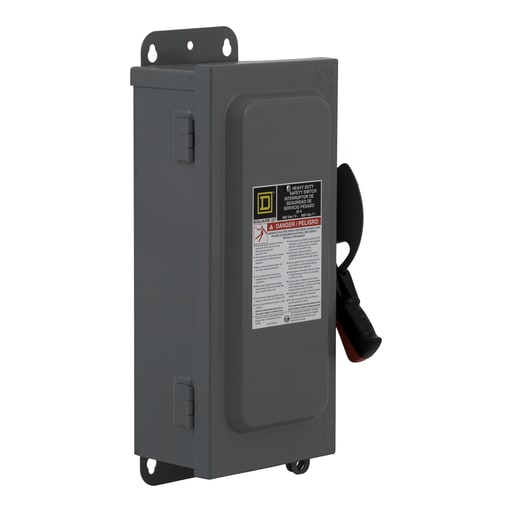

Square-D / Schneider - Square D H3612AWK 600 VAC 30 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Essential specifications

12-Digit UPC - 785901482024
Amperage - 30/60 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H3612AWK
Conductor Size - 12-6 AWG (AL)/14-6 AWG (CU)

Packaging

1 ea

EAN

00785901482024

Part #

195473

Catalog #

H3612AWK

Commercial reference

H3612AWK

12-Digit UPC:

785901482024

Amperage:

30/60 Amp

Applications:

HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

Catalog Number:

H3612AWK

Conductor Size:

12-6 AWG (AL)/14-6 AWG (CU)

Country of Origin:

USA

Current:

30 Amp

Depths:

7 Inch

Disconnect Type:

Fusible disconnect NULL

ERP_productname:

SQD H3612AWK SWITCH FUSIBLE HD 30A 60A-BOX NO KO

Enclosure:

12,3R

Enclosure Material:

Steel

Family Brand Name:

Square D

Heights:

16-1/2 Inch

Mounting Type:

Surface

NEMA Size:

12,3R

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Size:

10.5 IN,16.5 IN,7 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS

Type:

SAFETY SWITCH

Voltage:

600 Volt

Wattage:

12 3R

Widths:

10.5 in

SoneparProductId:

SKU_US_26898103

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 600A with voltage of 240 VAC and 250 VDC. It is rated when using time delay fuses of 200 HP at 240 VAC three phase and 50 HP at 250 VDC. This switch has a 4 wire configuration and is rated for AWG 3/0 to 500 kcmil aluminum and copper wire. This device has enclosure rating of NEMA 12 and it is made of galvannealed steel. It has a height of 46.25 in, width of 26.25 in and has a depth of 10.13 in. This switch has factory installed neutral. It is UL listed with the file E2875.
